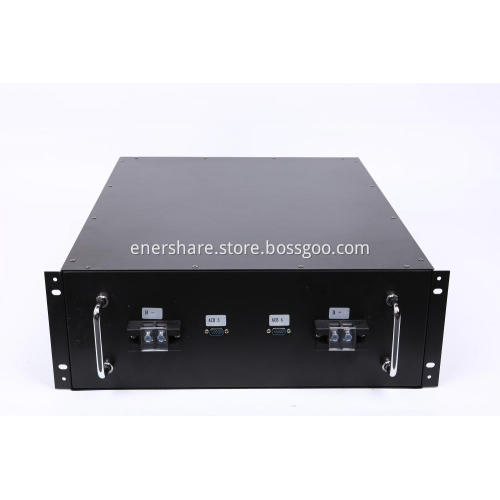

ESS Battery System Backup
- Payment Type:
- L/C, T/T, D/P, Paypal, Money Gram, Western Union
- Incoterm:
- FOB, CFR, CIF, EXW, FCA, CPT, CIP
- Min. Order:
- 10 Piece/Pieces
- Min. Order:
- 10 Piece/Pieces
- Delivery Time:
- 28 Days
- Transportation:
- Ocean, Land, Air
- Port:
- Shenzhen, HongKong
Your message must be between 20 to 2000 characters
Contact Now| Place of Origin: | China |
|---|---|
| Productivity: | 10000 |
| Supply Ability: | 5000 |
| Payment Type: | L/C,T/T,D/P,Paypal,Money Gram,Western Union |
| Incoterm: | FOB,CFR,CIF,EXW,FCA,CPT,CIP |
| Certificate: | CE/UN 38.3 |
| Transportation: | Ocean,Land,Air |
| Port: | Shenzhen,HongKong |
This ESS Battery System Backup is Off Grid Power Solutions, 51.2V Telecoms Batteries, Lithium Battery Off Grid, Residential Battery Storage System, Solar House Battery, High Capacity Electrical Backup, Lithium Battery With DC Output, Energy Storage System for Electrical Equipments, Power Energy Storage System, Power Bank For Home, Battery Backup Power Supply For Home.
The lithium iron phosphate battery has a series of unique advantages, such as high working voltage, high energy density, long cycle life, environmental protection and so on. It also supports stepless expansion, and can be used for large-scale electric energy storage after forming the energy storage system. The energy storage system of lithium iron phosphate battery consists of lithium iron phosphate battery, battery management system (BMS), converter (rectifier, inverter), central monitoring system, transformer, etc.
In the charging stage, the intermittent power supply or power grid is used for charging the energy storage system. The alternating current is rectified by the rectifier and charged to the energy storage battery module for energy storage. In the discharging stage, the energy storage system discharges to the power grid or load. The direct current of the energy storage battery module is inverted to the alternating current through the inverter, and the output of the inverter is controlled by the central monitoring system, so as to realize the energy storage The grid or load provides stable power output.
|
Battery type(kwh) |
LiFePO4 |
|
Usable energy(kw) |
10.24 |
|
Max output power(kw) |
5.12 |
|
Peak output power |
10.24 60S |
|
Round-trip efficiency |
>=95.3%(under test condition) |
|
Nominal voltage(v) |
51.2 |
|
Operating voltage range(v) |
43.2~56.4 |
|
communication |
RS485/CAN |
|
Dimension(W*H*D,mm) |
720*1000*615 |
|
Net weight |
About 140kg |
|
Enclosure protection rating |
IP20 |
|
Ambient temperature range |
-10~50 |
|
Certification&safety standard |
CE/UN38.3 |
