BYD Blade Battery Power Wall 5kwh
-
$2200.001-9 Piece/Pieces
-
$1999.00≥10 Piece/Pieces
- Transportation:
- Ocean
- Port:
- HONGKONG
Your message must be between 20 to 2000 characters
Contact Now| Place of Origin: | China |
|---|---|
| Supply Ability: | 10000 |
| Payment Type: | L/C,T/T |
| Transportation: | Ocean |
| Port: | HONGKONG |
With the development of modern technology, the introduction of blade batteries has attracted the attention of many riders. Of course, it is necessary to choose a blade battery with good performance and high usage rate. At present, BYD's blade battery has attracted much attention. The blade BYD battery adopts lithium iron phosphate Lifepo4 technology. It will be firstly installed in the blade battery released by BYD. There are certain innovations, and the module can be skipped during reorganization, which greatly improves the volume utilization rate and finally achieves the same space. The design goal of the core is that compared with the traditional battery pack, the volume utilization rate of the blade battery is increased by more than 50%. The blade lithium ion battery has many advantages. First, it has the advantages of high safety factor and light weight. What are the characteristics of the newly developed patented product Blade Battery Wall Home Storage from ENERSHARE?

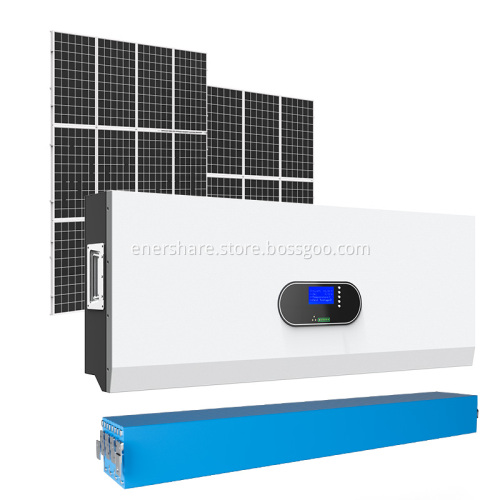

New arrival BYD blade battery wall mount power 48v 200ah 138ah lifepo4 battery storage home energy storage battery
*Unique shape and beautiful design
* BYD Blade battery cell
* The safest lithium battery material (LFP) battery
* Built-in BMS compatible with major inverter
* Longer cycle life ≥6000 cycles
It could be used in hospitals, bank data centers, wall-mounted homes, enterprise energy storage backup power supplies, wind complementary systems, offices, military, base stations, and other uninterrupted energy storage power supplies.
| Brade LFP Cell | |||
| Rated Capacity | 135AH | Nominal Voltage | 3.2V |
| Internal Impedance | ≤0.65mΩ | Dimension(mm) | 14.5T*90.5W*962H |
| Standard charge | Constant Current 0.5C5A Constant Voltage 3.65V 0.02C5A cut-off | Standard discharge | Constant current 0.5C5A end voltage 2.5 V |
| Package | |||
| Combination method | 16S1P | Rated Capacity | 135Ah |
| Factory Voltage | 51V-55V (40-60%) | Internal Impedance | ≤30mΩ |
| Standard charge | Constant Current 30A Constant Voltage see No.5 0.02CA cut-off | Standard discharge | Constant current： 30A end voltage see NO.4 |
| Operation Temperature Range | Charge : 0~45℃ | Storage Temperature Range | Less than 12 months : -10~35℃ |
| Discharge : -20~55℃ | |||
| System weight | 85kg | Battery box size | 1020*390*173 mm |
Nowadays, Enershare are manufacturing updated design---- wall-mount 48V100Ah battery which can interact with different inverters, such as Victron, DEYE，Megarevo，GOODWE，VOLTRONICS，GROWATT，K-STAR，SOLIS，STUDER,SMA.
Besides, our LFP batteries come with RS232,CAN-BUS and RS485 standard communication protocol. It's convenient to monitoring the LIFEPO4 batteries bank in real-time. (voltage, current, SOC, environment temperature, SOH)
Details Images
Enershare Products:
Battery Modules: Lead Acid Replacement , Motorcycle Starting Lithium Battery, residential back-up
Battery System: Solar Home Battery,Energy Storage System, All in one system, High voltage Battery ESS
Large Scale Integrated Energy Storage Systems: Mwh Container Energy Storage System , Outdoor Cabinet
