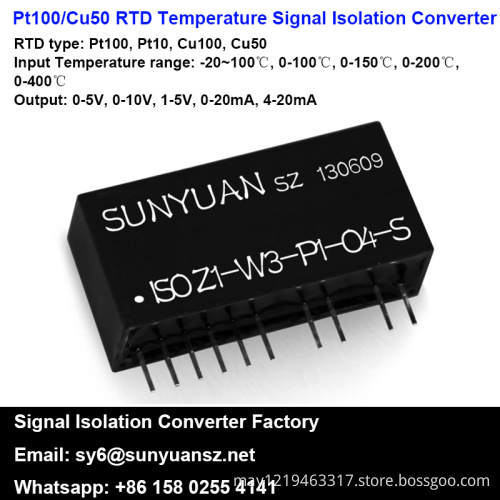

Pt100 RTD Signal to Analog Signal Isolation Converter

Pt100 RTD Signal to Analog Signal Isolation Converter

Features:

● Three-wire, four-wire or two-wire PT100/Cu50 thermal resistance signal input
● Accuracy, Linearization error grade:0.2（Relative Temperature）
● Built-in linear processing and long-term compensation circuit
● Isolation Voltage: 3000VDC Three port: input/power/output
● Auxiliary Power Supply：5V, 12V, 15V or 24VDC, etc
● International standard signal output：4-20mA/0-5V/0-10V etc
● Small size, low cost, easy use and high reliability
● Standard DIP 24/SIP12 Pin, UL94V-0 package
● Industrial temperature range: - 45℃ ~ + 85 ℃

Application:

● Temperature signal isolation, acquisition and transfer
● Industry site high-precision temperature measure
● Terminal resistance signal isolation and temperature control
● Ground interference suppression
● Temperature sensor signal converter to standard signal
● Oil temperature measure and Alarm
● Signal remote without distortion transmission
● Power monitoring, medical equipment, temperature control isolation barrier

Model Selection:
