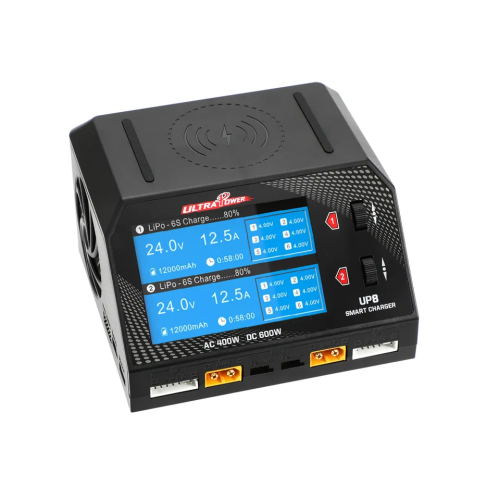

UP8 800W Dual Charger for 6S Drone Battery

Get Latest Price

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Product Description

Product Parameters

UP8 increases the function of external discharge to meet the users' demand for high-power discharge of batteries, UP8

connect a external discharger UP-D200 can achieve 200W discharge power, greatly improving the battery discharge speed

and saving time. Meanwhile, compared with the traditional discharger, the UP8 has a balancing discharge function, which

can effectively avoid single cell over discharge, which will be more safely and reliable.

Product Parameters And Characteristic
Input voltage	AC100-240V,DC9.0-30.0V
Output voltage	0.1-30V
Charge current	0.1-16.0Ax2
Discharge current	CH1:0.1-3.0A/0.1-15.0A(Externaldischarge mode) CH2:0.1-3.0A
Charge power	DC Input:2x300W AC Input:Max.400W(CH1+CH2=400W) Support power distribution
Discharge power	CH1:8W/200W(External discharge mode) CH2:8W
Support Battery Types	LiPo/LiHV/LiFe/Lilon(1-6S) NiMH/NiCd(1-16S) Lead Acid 2V-24V(1-12S)
Wireless charge power	Max.10W
Balance current	Max.1000mA/cell
LCD Screen type	3.5"480x320 LCD
Use Temperature	0-40℃
Storage Temperature	-20-60℃
Weight	780g
Dimensions	125x119x76mm

Standard Battery Parameters
	Nicd/NIMH	Pb	Life	Lilon	Lipo	LIHV
Rated Voltage	1.20V	2.00V	3.20V	3.60V	3.70V	3.80V
Full Charge Voltage	1.40V	2.40V	3.60V	4.10V	4.20V	4.35V
Storage Voltage	Not supported	Not supported	3.30V	3.70V	3.80V	3.90V
Discharge Voltage	0.5-1.10V	1.80-2.00V	2.60-2.90V	2.90-3.20V	3.00-3.30V	3.10-3.40V
Pre-charge Voltage	/	2.00V	2.90V	3.10V	3.20V	3.20V
Balance Charge	Not supported	Not supported	supported	supported	supported	supported
Unbalanced Charge	supported	supported	supported	supported	supported	supported
Support Cells	16S	1-12S	1-6S	1-6S	1-6S	1-6S
Max Charge Current	16.0A	16.0A	16.0A	16.0A	16.0A	16.0A
