DIY 5010 Quadcopter Motor For RC Drone UAV

DIY 5010 Quadcopter Motor For RC Drone UAV

Get Latest Price

Min. Order:: 1 Piece/Pieces

Min. Order:: 1 Piece/Pieces

Transportation:: Air

Port:: Shenzhen

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Place of Origin:	China
Productivity:	12000
Supply Ability:	1000/Month
Payment Type:	T/T,Paypal
Incoterm:	EXW
Certificate:	*
HS Code:	8501109990
Transportation:	Air
Port:	Shenzhen

Product Description

5010 Burshless Motor is the drone motors for Industry Drones . It is a very light motor only 166g per unit. Providing 0.8kg to 2kg per axis of rated load capacity. The wide rage of KV with different Drone Propeller can get wide range loads. Use for 1 to 2kg payload quad copters with 30 to 40 minutes flight time ,And work for a hexa drone Flight Platform with 2 to 5kg payload.

It is good for many different application scenes. This Brushless motor Designed with weather-proof. Prevent for corrosion ,Rain, Snow. And centrifugal cooling system bring higher efficiency of the heat sinking. It adds reliability and enable for continue running.

It is good for rescue drones , Survey Mapping Drones. Light payload (Such as wireless megaphone, search light etc) but long endurance flight time.

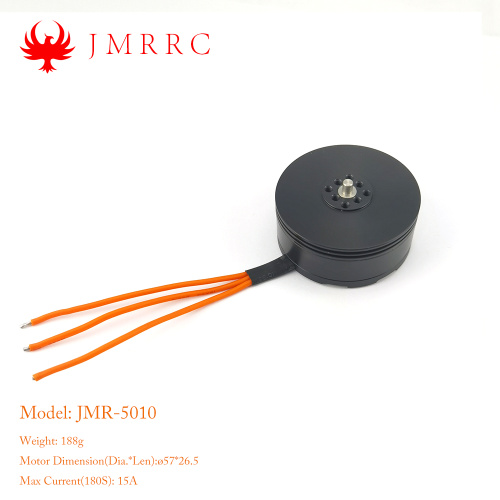

5010 Kv240 Brushless Motor For Quad Copter

JMR Motor Datasheet
Technical Data
Model Number		JMR-5010
Configuration		24N28P
Stator Diamter		50
Stator Length		10
Motor Dimension(Dia.*Len)		ø57*26.5
Weight(g)		188g
Idle current(10)@20V(A)		0.69A
No.of Cells(Lipo)		6~12S
Max Continuous Power(W)180S		490W
Internal Resistance		127mΩ
Max Current(180S)		15A

KV240
Prop （inch）	Voltages （V）	Throttle （%）	Load Currency （A）	Pull(g)	Power(W)	Efficiency(g /W)	Temperature(in full throttle load 10min)
*2170**	23	30%	1.2	400	27.6	14.493
	23	40%	2.6	750	59.8	12.542
	23	50%	4.6	1150	105.8	10.870
	23	52%	5.1	1250	117.3	10.656
	23	55%	5.7	1400	131.1	10.679
	23	58%	6.5	1550	149.5	10.368
	23	60%	7	1650	161.0	10.248
	23	62%	8	1750	184.0	9.511
	23	65%	9.1	1950	209.3	9.317
	23	68%	10.1	2050	232.3	8.825
	23	70%	11	2150	253.0	8.498
	23	75%	13	2400	299.0	8.027
	23	80%	15	2650	345.0	7.681
	23	90%	19.7	3100	453.1	6.842
	23	100%	25.7	3600	591.1	6.090

KV140
*2170**	45	30%	0.8	500	36.0	13.889
	45	40%	1.8	950	81.0	11.728
	45	50%	3.1	1450	139.5	10.394
	45	52%	3.3	1550	148.5	10.438
	45	55%	4	1750	180.0	9.722
	45	58%	4.8	1950	216.0	9.028
	45	60%	5	2100	225.0	9.333
	45	62%	5.5	2250	247.5	9.091
	45	65%	6.3	2450	283.5	8.642
	45	68%	7.1	2600	319.5	8.138
	45	70%	7.5	2750	337.5	8.148
	45	75%	9	3050	405.0	7.531
	45	80%	11	3350	495.0	6.768
	45	90%	14	3900	630.0	6.190
	45	100%	18.5	4500	832.5	5.405
