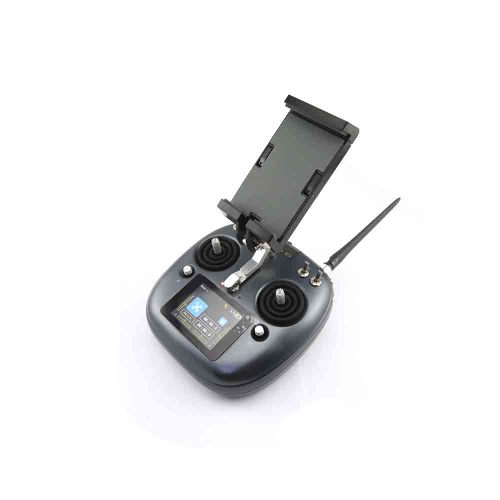

DK32S Pro 20km Drone Remote Controller

 DK32S PRO Radio Transmitter is a 3 in 1 remote controller combines the latest high-definition digital image transmission, radio trasmitter and  data transmission in one of the UAV intelligent data link system, integrated with a remote control to control multiple aircraft, remote control , ESC calibration, plan protection voice, one Key configuration parameters, etc., improve work efficiency, reduce the practical functions of complex setup steps, and make adjustment and use easier. It is a economy solution for industrail drones which applicatioin to security patrol, rescue etc.

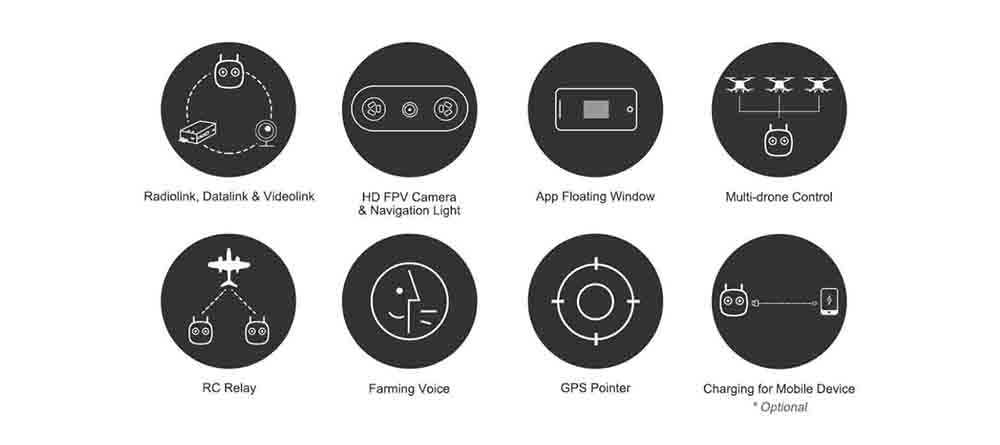

Its characteristics:

1. The DK32S PRO integrates a high-definition image transmission system, which can transmit the image in front of the drone to the ground end in real time, providing image reference for the route and AB point operation, and the flight operation is more efficient and safe.

2. A remote control can control the operation of three drone colleagues. In the flight operation, you can switch any aircraft to operate separately (other aircraft are not affected), support simultaneous control, and improve work efficiency.
3. For different flight control systems, you only need to select the corresponding flight control model to unlock the takeoff (support TOPXGUN, JIYI, EFY, BOYING, PIX-APM)
4. The sky end has a rich data interface, and the mmcx interface is used to quickly disassemble the antenna, and different antenna types can be replaced as needed.

5. 8W high brightness LED searchlight and high definition 150° undistorted camera. The searchlight only needs one data line to connect to the sky end. It is more convenient to install the quick socket and install the connection.

6. Supports a variety of HDMI PTZ cameras, thermal imaging, zoom pods and other image output devices. Support micro, mini standard HDMI connector. (Optional Hardware, And if select this HDMI device the FPV module wont work and exclude in the package.)

Remote communication digital transmission maximum communication distance (no interference, no blocking): 10-20 km
The maximum video link distance (no interference, no blocking): 5 km
working frequency

• Frequency Band: 2.400-2.483 GHz
• Video link: 5.8Ghz
• Channels: 26 Physical Channels, 16 transmitting Channels
• Applicable Models :Planes /Helicopters/Gliders/Quadcopters/Multi-Rotors/Vehicles/Boat/Robotics
• Languages : Chinese/English
