X1400 12L Granules Spread Drone
- Min. Order:
- 1 Set/Sets
- Min. Order:
- 1 Set/Sets
- Transportation:
- Air
- Port:
- Shenzhen, Qing Dao
Your message must be between 20 to 2000 characters
Contact Now| Place of Origin: | China |
|---|---|
| Productivity: | 300 |
| Supply Ability: | 50 sets/ Month |
| Payment Type: | T/T,Paypal |
| Incoterm: | EXW |
| Transportation: | Air |
| Port: | Shenzhen,Qing Dao |

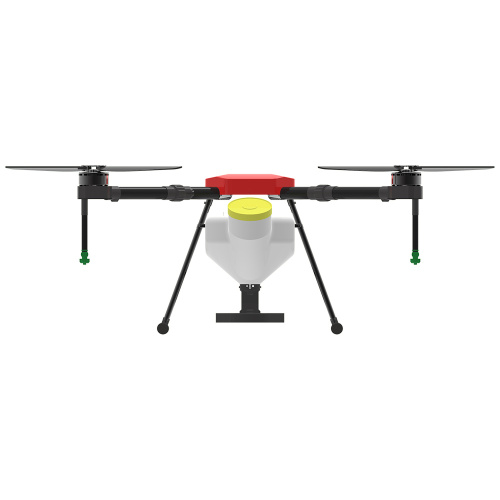

JMR-V1400 Agricultural spreading drone was designed with Modular structures ,Convenient for maintenance. Fertilizer Spreading efficiency about 3 to 3.5.0 HA/ hour. Intelligent spraying work release your hands , Make flight plans by App for your farms ,Setup the parameters for the flights speed, liquid flow etc. Then let the drone do it self. Drone will give you a report after it finish spreading work, Ofcourse you can save the missions data for next spraying work. 12L spreader drone beseem spreading the dry granules which diameter within 2 to 7mm. The turnplate speed and tank outlet door can be adjustable by remote controller. Functions include: A-B point automatic spreading work;Airway navigation automatic spreading, Tank empty alarm and continue to spray;Low battery safe protection; Fail safe protection; Height keeping radar etc.
# If you have experiences for build Drones, You also can buy our Drone Frame and Drone Propulsion System build the Agricultural Spraying Drone with Drone Flight Controller which you prefer.It will be econonmy than buy a ready to fly drone.
Quick reload battery cartridge
Battery slipping tray compatible with different capacity batteries. (2*6S 12000mAh upto 2*6S 22000mAh) . And smart 12S battery also.
Stronger cut section design
"H" shaped of cut section give stronger structural strength for this drone. Reinforcing rib on the bottom bring the powerful shock resistance and impact resistance.
The lowest maintenance charger if any air crash happened.
Output & Input Sockets Dock Easy connect to the Equipments and sensors.
Multi purpose
Compatible with 12L spreading system ,Easily exchange between spreading and spraying system just remove few screws .
|
SPECIFICATIONS |
|||
|
Model : |
JMR-V1400-S |
Tank Capc. |
12 L |
|
N.W. : |
12.6Kg |
Max Take Off Weight: |
25Kg |
|
Dimension(expand): |
109x109x55 CM |
Dimension(folded): |
55x55x55CM |
|
Control Radius: |
2000 Meters |
Max Flight Height: |
30 Meters |
|
Spreading Width: |
3.5~5 Meters |
Flight Speed: |
1~9 M/S |
|
Hovering Time(no load): |
22.2Min |
Hovering Time(load): |
9.5 Min |
* Hovering Time Tested by 2*6S 12000mAh, N3 AG 1.0 FC. Full load at 23.8 Kg
|
FUNCTIONS LIST |
|||
|
FLIGHT MODE |
MANUAL/GPS |
SPRAY MODE |
MANUAL/A-B POINT/AIRWAY |
|
TERRAIN FOLLOW |
RADAR |
OBSTACLE SENSOR |
RADAR * |
|
EMPTY TANK WARNING |
YES |
CONTINUE SPRAY |
YES |
|
LOW BATTERY ALRM |
LANDING/RTH |
RETURN TO LANDING |
FAILSAFE RTH/SMART RTH |
|
FLOWRATE CONTROL |
MANUAL/AUTO |
DATA PROTECTION |
YES |
|
FPV( REAL TIME VIDEO) |
720P * |
CROP APP |
Android App |
* Optional Hardware request
Measurement
Because Agricultural Drone maybe different configurations depend customers demand, Price offered Do Not Include the Drone Lipo Batteries and Lipo Battery Charger , Duo to supply the correct products to you ,Please contact us before your make order.
