Hybrid drone power supply 3600W generator
- Min. Order:
- 1 Set/Sets
- Min. Order:
- 1 Set/Sets
- Transportation:
- Ocean, Air
- Port:
- Shenzhen
Your message must be between 20 to 2000 characters
Contact Now| Place of Origin: | China |
|---|---|
| Productivity: | 1000 |
| Supply Ability: | 300/Month |
| Payment Type: | T/T,Paypal |
| Incoterm: | EXW |
| Transportation: | Ocean,Air |
| Port: | Shenzhen |

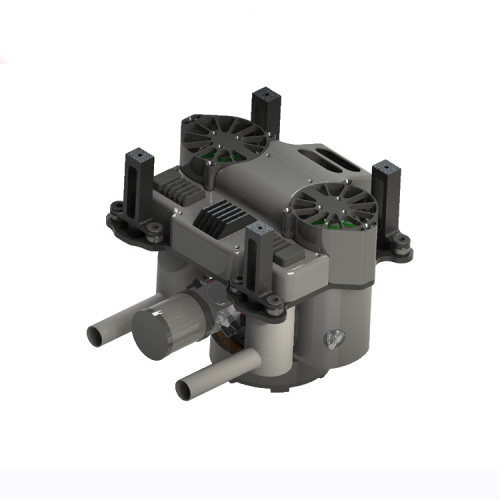

F3600 generator system is a high efficiency, high output and very light generator system designed for multicopters and VTOL Fixedwings. The continuous output power of this generator is 3600w, and it is suitable for high payload or working at high altitude. Max taking off weight of Gaia 160 by using this generator reaches take off weight at 22kg.
The F3600 has a new designed exhaust pipe and cooling system, which can greatly enhance the performance of the inner engine. F3600 generator system is a good choice for those clients who want to fly over long range and fly very long time (1 to 3 hours)
Because of the high efficiency of generator system, multicopter equipped with can be used in many fileds like power line inspection, mapping industry and logistics etc. Also could equip agricultural sparyer with this generator, which can load 10L pesticide and the total cost will much lower comparing with the pure electric drone.
1.Rated power : 3600 Watt
Ldle speed:1500rpm
Static Thrust 21kg/100meters Altitude
Static Thrust 18kg/1800meters Altitude
The standard of the propller:25×10 26×9 27×8
2.Specifications
Displacement:85cm³
Bore×stroke：52mm×40mm
Fule Type: 95# Gasonline with FD grade 2T oil. (Mixing ratio 25:1)
Fule Comsuption: 3.5L/hour
Fule tank cap.: 4.2L.
Work Temperature: -20~45 Cels degrees.
Net weight:4600g
