Agriculture spray drone seeds fertilizer spreading drone
- Min. Order:
- 1 Set/Sets
- Min. Order:
- 1 Set/Sets
- Transportation:
- Air
- Port:
- Shenzhen, QingDao
Your message must be between 20 to 2000 characters
Contact Now| Place of Origin: | China |
|---|---|
| Productivity: | 200 |
| Supply Ability: | 50/Month |
| Payment Type: | T/T,Paypal |
| Incoterm: | EXW |
| Transportation: | Air |
| Port: | Shenzhen,QingDao |

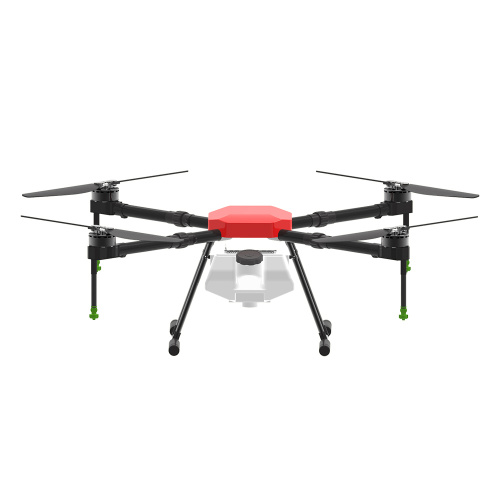

JMR-X1400 Agriculture spray drone was designed with new innovation. Modular construction design let this drone build quickly and easily, Convenient for maintenance. The excellent Anti-vibration ability precede the traditional carbon fiber frame. High efficiency propulsion system give this drone max 32kg take off ability (with 32` drone propellers) . Pesticide spray effeciency about 2.5 to 3.0 hectares per hour. Intelligent spray work release your hands , Just make flight plan by App for your fields ,setup the parameters of spraying then let the drone do it self. Drone will give you a report of the spraying work, And you can save the missions data for next spraying work. 10L sprayer drone beseem to spraying the crops of rice ,wheat, corn, sugarcane, soybean, peanut ,grass,tea ,watermelon etc. Multi-color and LOGO printing of the cover is available . Functions include: A-B point automatic spraying work;Airway navigation automatic spraying; Tank empty alarm and continue to spray;Low battery safe protection; Fail safe protection; Height keeping radar etc.
Battery slipping tray compatible with different capacity batteries. (2*6S 10000mAh upto 2*6S 22000mAh) . And smart 12S battery also.
Stronger cut section design
"H" shaped of cut section give stronger structural strength for this drone. Reinforcing rib on the bottom bring the powerful shock resistance and impact resistance.
Nozzles Protection
Rubber Nozzles mount can anti-collision during drone in transporting.
Multi purpose
Compatible with 13L spreading system ,Easily exchange between spreading and spraying system just remove few screws .
|
SPECIFICATIONS |
|||
|
Model : |
JMR-X1400 |
Tank Capc. |
10.2 L |
|
N.W. : |
10.5Kg |
Max Take Off Weight: |
26Kg /32KG (32` PROP) |
|
Dimension(expand): |
109x109x45 CM |
Dimension(folded): |
55x55x45 CM |
|
Control Radius: |
3000 Meters |
Max Flight Height: |
30 Meters |
|
Spraying Width: |
3~5 Meters |
Flight Speed: |
1~9 M/S |
|
Hovering Time(no load): |
23 Min |
Hovering Time(load): |
10 Min |
* Hovering Time Tested by 2*6S 16000mAh, N3 AG 1.0 FC. Full load at 24.5Kg
|
FUNCTIONS LIST |
|||
|
FLIGHT MODE |
MANUAL/GPS |
SPRAY MODE |
MANUAL/A-B POINT/AIRWAY |
|
TERRAIN FOLLOW |
RADAR |
OBSTACLE SENSOR |
RADAR * |
|
EMPTY TANK WARNING |
YES |
CONTINUE SPRAY |
YES |
|
LOW BATTERY ALRM |
LANDING/RTH |
RETURN TO LANDING |
FAILSAFE RTH/SMART RTH |
|
FLOWRATE CONTROL |
MANUAL/AUTO |
DATA PROTECTION |
YES |
|
FPV( REAL TIME VIDEO) |
720P * |
CROP APP |
Android App |
* Optional Hardware request
Measurement
This Agriculture Spraying Drone Support Folding Spraying Nozzle Set.
Because Agricultural Drone may different configurations depend customers demand, Price offered Do Not Include the Drone Lipo Batteries and Lipo Battery Charger , Duo to supply the correct products to you ,Please contact us before your make order.
