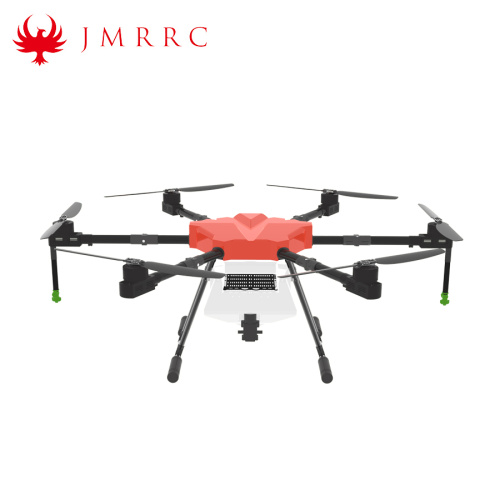

JMR-V1250HZ Six-rotor 10L agricultural spraying drone
  • JMR-V1250HZ Six-rotor 10L agricultural spraying drone
  • JMR-V1250HZ Six-rotor 10L agricultural spraying drone
  • JMR-V1250HZ Six-rotor 10L agricultural spraying drone
  • JMR-V1250HZ Six-rotor 10L agricultural spraying drone
  • JMR-V1250HZ Six-rotor 10L agricultural spraying drone
  • JMR-V1250HZ Six-rotor 10L agricultural spraying drone
JMR-V1250HZ Six-rotor 10L agricultural spraying drone
JMR-V1250HZ Six-rotor 10L agricultural spraying drone
JMR-V1250HZ Six-rotor 10L agricultural spraying drone
JMR-V1250HZ Six-rotor 10L agricultural spraying drone
JMR-V1250HZ Six-rotor 10L agricultural spraying drone
JMR-V1250HZ Six-rotor 10L agricultural spraying drone

JMR-V1250HZ Six-rotor 10L agricultural spraying drone

Min. Order:
1 Set/Sets
Min. Order:
1 Set/Sets
Transportation:
Air
Port:
Shenzhen, Qing Dao
Quantity:

Your message must be between 20 to 2000 characters

Contact Now
Basic Info
Basic Info
Place of Origin: China
Productivity: 300
Supply Ability: 50 sets/ Month
Payment Type: T/T,Paypal
Incoterm: EXW
Certificate: ce
HS Code: 890003022
Transportation: Air
Port: Shenzhen,Qing Dao
Product Description
Product Description

JMR-V1250HZ  Agricultural spraying drone The fuselage adopts a closed design to practical prevent pesticides from entering the flight control system. Provide security for long hours of operation.  The excellent shock reistance  ability give the drone with reliable fligth performances . Pesticide spraying efficiency about 3 to 3.5.0 HA/ hour. Intelligent spraying work release your hands , Make flight plans by App for your farms ,Setup the parameters  for the flights speed, liquid flow etc. Then let the drone do it self. Drone will give you a report after it finish spraying work, Ofcourse you can save the missions data for next spraying work. 10L sprayer drone beseem the spraying of  rice ,wheat, corn, sugarcane, soybean, peanut ,grass,tea ,watermelon etc. Functions include: A-B point automatic spraying work;Airway navigation automatic spraying; Tank empty alarm and continue to spray;Low battery safe protection; Fail safe  protection; Height keeping radar etc.



 fertilizers spraying,agriculture uav crop sprayer GPS

Quick reload battery cartridge

Battery slipping tray compatible with different capacity batteries. (2*6S 12000mAh upto 2*6S 22000mAh) . And smart 12S battery also.


10-tank-pumps-1

Integral Carbon Fiber Arm

The agricultural spray drone arm uses an integrated arm tube, The Integral carbon arm have 6pcs of #7075, which makes the drone less vibration, more stable and reliable in flight.

Agricultural spraying drone carbon fiber frame integrated arm tube




Output  & Input Sockets Dock Easy connect to  the Equipments and sensors.

Drone Plugs


Nozzles Protection

Rubber Nozzles mount can anti-collision during drone in transporting.

 anti collision nozzle



Multi purpose
Compatible with 13L spreading system ,Easily exchange between spreading and spraying system just remove few screws .



10L agriculture uav crop sprayer GPS     13L Fertilizer spreading drone

JMR-V1250 10L Rice fruit trees grape orchards fruit trees wheat crops spraying drones spraying drones  drone with crop sprayer 10kg 16L 20L 25L 30L DIY agricultuer drone

Functions List:

A-B point spraying



SPECIFICATIONS

Model :

JMR-V1250HZ

Tank Capc.

1L

N.W.  :

9.5Kg

Max Take Off Weight:

24Kg

Dimension(expand):

126x108x53 CM

Dimension(folded):

80x70x53 CM

Control Radius:

3000 Meters

Max Flight Height:

30 Meters

Spraying Width:

3.5~5 Meters

Flight Speed:

1~9 M/S

Hovering Time(no load):

18 Min

Hovering Time(load):

8.5 Min

* Hovering Time Tested by  2*6S 12000mAh, N3 AG 1.0 FC.  Full load at 23.8 Kg





FUNCTIONS LIST

FLIGHT MODE

MANUAL/GPS

SPRAY MODE

MANUAL/A-B POINT/AIRWAY

TERRAIN FOLLOW

RADAR

OBSTACLE SENSOR

RADAR *

EMPTY TANK WARNING

YES

CONTINUE SPRAY

YES

LOW BATTERY ALRM

LANDING/RTH

RETURN TO LANDING

FAILSAFE RTH/SMART RTH

FLOWRATE CONTROL

MANUAL/AUTO

DATA PROTECTION

YES

FPV( REAL TIME VIDEO)

720P *

CROP APP

Android App

* Optional Hardware request



Measurement





 V1250HZ-size





Because Agricultural Drone maybe different configurations depend customers demand, Price offered Do Not Include the Drone Lipo Batteries and Lipo Battery Charger , Duo to supply the correct products to you ,Please contact us before your make order.
