AUO 7 inch TFT-LCD B070ATN01.0

Get Latest Price

Payment Type:: T/T, Paypal, Western Union

Incoterm:: FOB, EXW

Min. Order:: 1 Piece/Pieces

Min. Order:: 1 Piece/Pieces

Delivery Time:: 3 Days

Transportation:: Ocean, Land, Air

Port:: HK, Shenzhen

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Place of Origin:	TAIWAN
Payment Type:	T/T,Paypal,Western Union
Incoterm:	FOB,EXW
Certificate:	CE,ROHS,ISO9001
Transportation:	Ocean,Land,Air
Port:	HK,Shenzhen

Product Description

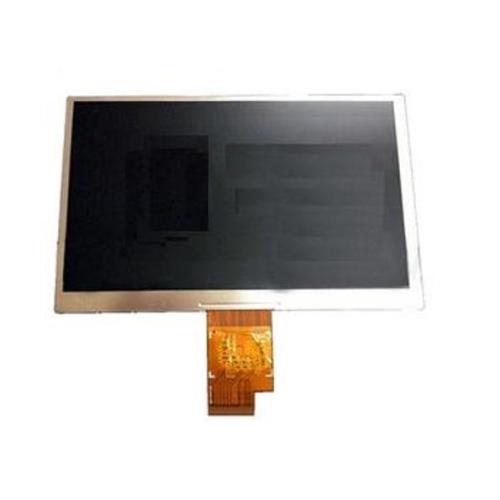

B070ATN01.0 is a 7 inch diagonal a-Si TFT-LCD display screen, This AUO TFT-LCD is a 7.0 inch with Consumer Lcd Display, it have LCD Controller and Tft Color Screen, with resolution of 1024(RGB)×600 (WSVGA), with a built-in WLED backlight,without LED driver,without touch screen. As a TN, Normally White, Transmissive LCM product,B070ATN01.0 can provides 350 cd/m² brightness, 500:1 contrast ratio, 75/75/70/75(Typ.)(CR≥10) (L/R/U/D) viewing angle,B070ATN01.0 utilizes LVDS (1 ch, 6/8-bit),as it's signal inputting system.

We are able to offer AD board for this display to support VGA video input.

Panel Model	B070ATN01.0
Panel Brand	AUO
Panel Size	7.0 inch
Panel Type	a-Si TFT-LCD , LCM
Pixel Format	RGB Vertical Stripe
Resolution	1024(RGB)×600 , WSVGA
Display Area	153.6(W)×90(H) mm
Outline Size	167.25(W)×104.65(H) ×4.8(D) mm
Brightness	350 cd/m² (Typ.)
Viewing Angle	75/75/70/75 (Typ.)(CR≥10)
Display Colors	262K/16.2M 50% (CIE1931)
Frequency	60Hz
Weight	100g (Max.)
Bezel Opening	155.6(W)×92.0(H) mm
Surface	Glare (Haze 0%), Hard coating (3H), Reflection 4.3% (Typ.)
Contrast Ratio	700:1 (Typ.) (TM)
Display Mode	TN, Normally White, Transmissive
Response Time	16 (Typ.)(Tr+Td)
Lamp Type	4S6P WLED , 15K hours , Without Driver
Touch Screen	Without
Signal Interface	LVDS (1 ch, 6/8-bit) , 39 pins , FPC
Input Voltage	3.3V (Typ.)
Environment	Operating Temp.: -20 ~ 60 °C ; Storage Temp.: -30 ~ 70 °C
