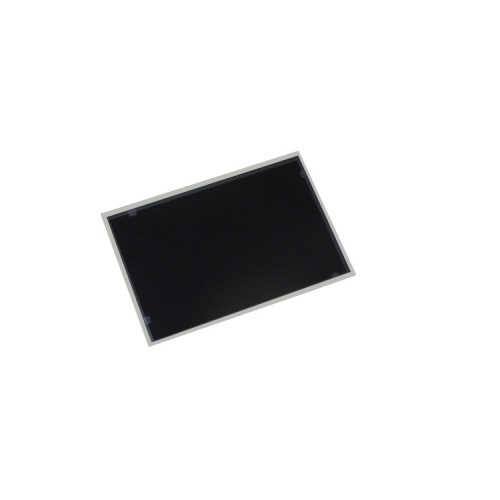

G101UAN01.0 10.1 inch AUO TFT-LCD

$20.00

≥1 Piece/Pieces

Min. Order:: 1 Piece/Pieces

Min. Order:: 1 Piece/Pieces

Transportation:: Ocean, Land, Air, Express

Port:: HK, Shenzhen

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Place of Origin:	TAIWAN
Payment Type:	T/T,Paypal
Incoterm:	FOB,EXW
Certificate:	CE,ROHS,ISO9001
Transportation:	Ocean,Land,Air,Express
Port:	HK,Shenzhen

Product Description

This AUO TFT-LCD is a 10.1 inch with Consumer Lcd Display, it have LCD Controller, Backlight Cable and Tft Color Screen, G101UAN01.0 supports display 1920(RGB)×1200 (WUXGA) with aspect ratio of 16:10 (W:H), whose pixels are arranged in RGB Vertical Stripe. As for mechanical detail, it features active area of 216.81(W)×135.5(H) mm, outline size of 228.22(W)×147.3(H)×5.35(D) mm, with surface treament of Hard coating, Antireflection, net weight of 140g (Max.). As a AHVA, Normally Black, Transmissive LCM product, G101UAN01.0 can provides 380 cd/m² display brightness 800:1 transimissive contrast ratio, 89/89/89/89 (Typ.)(CR≥10) (L/R/U/D) viewing angle, best view direction on Symmetry , and response time of 25 (Typ.)(Tr+Td) ms. Gray scale or the brightness of the sub-pixel is determined with a 6-bit + Hi-FRC gray scale signal for each dot, thus presenting a palette of 16.7M colors, also with performance of color gamut 52% (NTSC). This product adopted WLED as it's backlight systerm which was placed as Edge light type and have a working life time of 30K hours, With LED Driver. G101UAN01.0 utilizes eDP (2 Lanes) as it's signal inputting systerm, which connected by 30 pins Connector with power supply voltage of 3.3V (Typ.). It's typical vertical frame rate (Fv) is 60Hz.

We are able to offer AD board for this display to support VGA video input.

Model	G101UAN01.0
Brand	AUO
Diagonal Size	10.1 inch
Pixel Format	1920(RGB)×1200 [WUXGA] 224PPI
Active Area	216.81(H)×135.5(V) mm
Luminance	380 cd/m² (Typ.)
View Direction	Symmetry
Viewing Angle	89/89/89/89 (Typ.)(CR≥10)
Support Color	16.7M 52% NTSC
Weight	140g (Max.)
Frame Rate	60Hz
Type	a-Si TFT-LCD , LCM
Configuration	RGB Vertical Stripe
Outline Dim.	228.22(H)×147.3(V) ×5.35(D) mm
Treatment	Hard coating, Antireflection
Contrast Ratio	800:1 (Typ.) (TM)
Response Time	25 (Typ.)(Tr+Td)
Operating Mode	AHVA, Normally Black, Transmissive
Light Source	WLED , 30K hours , With LED Driver
Touch Panel	Without
Interface Type	eDP (2 Lanes) , eDP1.2 30 pins Connector
Power Supply	3.3V (Typ.)
Environment	Operating Temperature: -10 ~ 60 °C ; Storage Temperature: -20 ~ 60 °C
