P130ZFA-BA1 Chimei Innolux 13.0 inch TFT-LCD
- Payment Type:
- T/T, Paypal, Western Union
- Incoterm:
- FOB, EXW
- Min. Order:
- 1 Piece/Pieces
- Min. Order:
- 1 Piece/Pieces
- Delivery Time:
- 3 Days
- Transportation:
- Ocean, Land, Air
- Port:
- HK, Shenzhen
Your message must be between 20 to 2000 characters
Contact Now| Place of Origin: | TAIWAN |
|---|---|
| Payment Type: | T/T,Paypal,Western Union |
| Incoterm: | FOB,EXW |
| Certificate: | CE,ROHS,ISO9001 |
| Transportation: | Ocean,Land,Air |
| Port: | HK,Shenzhen |
Chimei Innolux Corporation (hereafter called Chimei Innolux) P130ZFA-BA1 is a 13.0 inch diagonal a-Si TFT-LCD display screen product, with an incorporated WLED lighting system, without backlight driver, without touch screen. This Innolux TFT-LCD is a 13.0 inch with Consumer Lcd Display, it have LCD Controller and Tft Color Screen. Based on datasheet with version of Ver.B which was released out on 10 1 2018, P130ZFA-BA1 supports display 2160(RGB)×1440 with aspect ratio of 15:10 (W:H), whose pixels are arranged in RGB Vertical Stripe. As for mechanical detail, it features active area of 274.75(W)×183.17(H) mm, outline size of 280.75(W)×196.82(H) mm, with surface treament of Glare (Haze 0%), Hard coating (3H), net weight of 260g (Max.), shape stype of Slim (PCBA Bent, T≤3.0mm). As a IPS, Normally Black, Transmissive LCM product, P130ZFA-BA1 can provides 330 cd/m² display brightness 1000:1 transimissive contrast ratio, 85/85/85/85 (Typ.)(CR≥10) (L/R/U/D) viewing angle, best view direction on Symmetry , and response time of 25/45 (Typ.)(Tr/Td) ms. Gray scale or the brightness of the sub-pixel is determined with a 8-bit gray scale signal for each dot, thus presenting a palette of 16.7M colors, also with performance of color gamut 99% (sRGB). This product adopted 9S6P WLED as it's backlight systerm which was placed as Edge light type, external backlight driver is additionally needed. P130ZFA-BA1 utilizes eDP (4 Lanes) as it's signal inputting systerm, which connected by 30 pins Connector with power supply voltage of 3.3V (Typ.). It's typical vertical frame rate (Fv) is 60Hz.
We are able to offer AD board for this display to support VGA video input
Panel Model
P130ZFA-BA1
Panel Brand
Chimei Innolux
Panel Size
13.0"
Panel Type
a-Si TFT-LCD, LCM
Resolution
2160(RGB)×1440
Pixel Format
RGB Vertical Stripe
Display Area
274.75(W)×183.17(H) mm
Outline Size
280.75(W)×196.82(H) mm
Surface
Glare (Haze 0%), Hard coating (3H)
Brightness
330 cd/m² (Typ.)
Contrast Ratio
1000:1 (Typ.) (TM)
Viewing Angle
85/85/85/85 (Typ.)(CR≥10)
Display Mode
IPS, Normally Black, Transmissive
Best View on
Symmetry
Response Time
25/45 (Typ.)(Tr/Td)
Display Colors
16.7M 99% sRGB
Lamp Type
9S6P WLED , Without Driver
Frequency
60Hz
Touch Screen
Without
Shape Style
Slim (PCBA Bent, T≤3.0mm)
Signal Interface
eDP (4 Lanes) , 30 pins Connector
Input Voltage
3.3V (Typ.)
Environment
Operating Temp.: -10 ~ 50 °C ; Storage Temp.: -20 ~ 65 °C

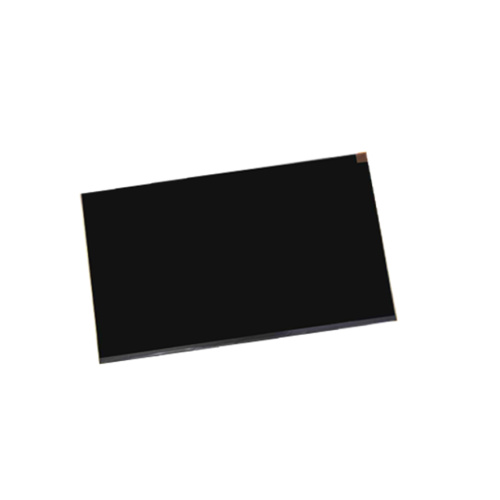

Product Picture:
