N133BGE-EAB Innolux 13.3 inch TFT-LCD
- Payment Type:
- T/T, Paypal, Western Union
- Incoterm:
- FOB, EXW
- Min. Order:
- 1 Piece/Pieces
- Min. Order:
- 1 Piece/Pieces
- Delivery Time:
- 3 Days
- Transportation:
- Ocean, Land, Air
- Port:
- HK, Shenzhen
Your message must be between 20 to 2000 characters
Contact Now| Place of Origin: | TAIWAN |
|---|---|
| Payment Type: | T/T,Paypal,Western Union |
| Incoterm: | FOB,EXW |
| Certificate: | CE,ROHS,ISO9001 |
| Transportation: | Ocean,Land,Air |
| Port: | HK,Shenzhen |
N133BGE-EAB (Product Code: CMN1362) is a 13.3 inch diagonal a-Si TFT-LCD display screen product from Innolux, with a built-in WLED backlight, With LED Driver, without touch screen. This Innolux TFT-LCD is a 13.3 inch with Consumer Lcd Display, it have LCD Controller and Tft Color Screen. On the basis of latest version datasheet Ver3.0 which was released out on 7 8 2014, N133BGE-EAB supports display 1366(RGB)×768 (WXGA) with aspect ratio of 16:9 (W:H), whose pixels are arranged in RGB Vertical Stripe. As for mechanical detail, it features active area of 293.42(W)×164.97(H) mm, outline size of 306.3(W)×195.2(H)×3(D) mm, viewing area size of 296.42(W)×167.97(H) mm, with surface treament of Antiglare, Hard coating (3H), net weight of 230/250g (Typ./Max.), shape stype of Slim (PCBA Flat, T≤3.2mm). As a TN, Normally White, Transmissive LCM product, N133BGE-EAB can provides 220 cd/m² display brightness 500:1 transimissive contrast ratio, 45/45/20/45 (Typ.)(CR≥10) (L/R/U/D) viewing angle, best view direction on 6 o'clock , and response time of 8/8 (Typ.)(Tr/Td) ms. Gray scale or the brightness of the sub-pixel is determined with a 6-bit gray scale signal for each dot, thus presenting a palette of 262K colors, also with performance of color gamut 50% (NTSC). This product adopted 9S3P WLED as it's backlight systerm which was placed as Edge light type and have a working life time of 15K hours, With LED Driver. N133BGE-EAB utilizes eDP (1 Lane) as it's signal inputting systerm, which connected by 30 pins Connector with power supply voltage of 3.3V (Typ.). It's typical vertical frame rate (Fv) is 60Hz.
We are able to offer AD board for this display to support VGA video input
Model Name
N133BGE-EAB (CMN1362)
Manufacturer
Innolux
Screen Size
13.3 inch
Screen Type
LCM, a-Si TFT-LCD
Pixel Number
1366(RGB)×768 (WXGA)
Arrangement
RGB Vertical Stripe
Active Area(mm)
293.42 × 164.97 (H×V)
Outline(mm)
306.3 × 195.2 × 3 (H×V×D)
Bezel Area(mm)
296.42 × 167.97 (H×V)
Treatment
Antiglare, Hard coating (3H)
Luminance
220 cd/m² (Typ.)
Contrast Ratio
500 : 1 (Typ.) (TM)
Viewing Angle
45/45/20/45 (Typ.)(CR≥10)
Response
8/8 (Typ.)(Tr/Td) ms
Good View at
6 o'clock
Work Mode
TN, Normally White, Transmissive
Color Depth
262K 50% NTSC
Backlight
9S3P WLED , 15K hours , With LED Driver
Outline Shape
Slim (PCBA Flat, T≤3.2mm)
Refresh Rate
60Hz
Touchscreen
Without
Signal Type
eDP (1 Lane) , Connector 30 pins
Voltage Supply
3.3V (Typ.)
Max. Ratings
Storage Temp.: -20 ~ 60 °C Operating Temp.: 0 ~ 50 °C

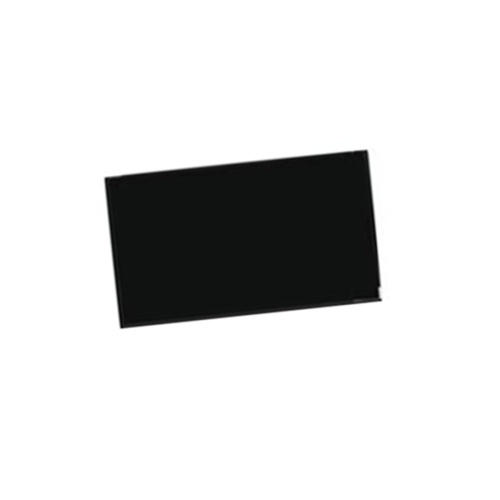

Product Picture:
