N140HCA-EBA Innolux 14.0 inch TFT-LCD
- Payment Type:
- T/T, Paypal, Western Union
- Incoterm:
- FOB, EXW
- Min. Order:
- 1 Piece/Pieces
- Min. Order:
- 1 Piece/Pieces
- Delivery Time:
- 3 Days
- Transportation:
- Ocean, Land, Air
- Port:
- HK, Shenzhen
Your message must be between 20 to 2000 characters
Contact Now| Place of Origin: | TAIWAN |
|---|---|
| Payment Type: | T/T,Paypal,Western Union |
| Incoterm: | FOB,EXW |
| Certificate: | CE,ROHS,ISO9001 |
| Transportation: | Ocean,Land,Air |
| Port: | HK,Shenzhen |
Innolux Corporation (hereafter called Innolux) N140HCA-EBA (Product Code: CMN14C8) is a 14.0 inch diagonal a-Si TFT-LCD display screen product, with an incorporated WLED lighting system, With LED Driver, without touch screen. This Innolux TFT-LCD is a 14.0 inch with Consumer Lcd Display, it have LCD Controller and Tft Color Screen. Based on datasheet with version of Ver1.0 which was released out on 4 6 2016, N140HCA-EBA supports display 1920(RGB)×1080 (FHD) with aspect ratio of 16:9 (W:H), whose pixels are arranged in RGB Vertical Stripe. As for mechanical detail, it features active area of 309.31(W)×173.99(H) mm, outline size of 315.35(W)×197.22(H)×3(D) mm, with surface treament of Glare (Haze 0%), Hard coating (3H), net weight of 270/280g (Typ./Max.), shape stype of Slim (PCBA Flat, T≤3.2mm). As a AAS, Normally Black, Transmissive LCM product, N140HCA-EBA can provides 220 cd/m² display brightness 800:1 transimissive contrast ratio, 89/89/89/89 (Typ.)(CR≥10) (L/R/U/D) viewing angle, best view direction on Symmetry , and response time of 14/11 (Typ.)(Tr/Td) ms. Gray scale or the brightness of the sub-pixel is determined with a 6-bit gray scale signal for each dot, thus presenting a palette of 262K colors, also with performance of color gamut 45% (NTSC). This product adopted WLED as it's backlight systerm which was placed as Edge light type and have a working life time of 15K hours, With LED Driver. N140HCA-EBA utilizes eDP (2 Lanes) as it's signal inputting systerm, which connected by 30 pins Connector with power supply voltage of 3.3V (Typ.). It's typical vertical frame rate (Fv) is 60Hz.
We are able to offer AD board for this display to support VGA video input
Model Name
N140HCA-EBA (CMN14C8)
Manufacturer
Innolux
Screen Size
14.0 inch
Pixel Number
1920(RGB)×1080 (FHD)
Active Area(mm)
309.31 × 173.99 (H×V)
Luminance
220 (Typ.)(cd/m²)
Viewing Angle
89/89/89/89 (Typ.)(CR≥10)
Good View at
Symmetry
Color Depth
262K 45% NTSC
Outline Shape
Slim (PCBA Flat, T≤3.2mm)
Refresh Rate
60Hz
Screen Type
LCM , a-Si TFT-LCD
Arrangement
RGB Vertical Stripe
Outline(mm)
315.35 × 197.22 × 3 (H×V×D)
Treatment
Glare (Haze 0%), Hard coating (3H)
Contrast Ratio
800 : 1 (Typ.) (TM)
Work Mode
AAS, Normally Black, Transmissive
Response
14/11 (Typ.)(Tr/Td) ms
Backlight
WLED , 15K hours , With LED Driver
Touchscreen
Without
Signal Type
eDP (2 Lanes) , 30 pins Connector
Voltage Supply
3.3V (Typ.)
Max. Ratings
Storage Temp.: -20 ~ 60 °C Operating Temp.: 0 ~ 50 °C

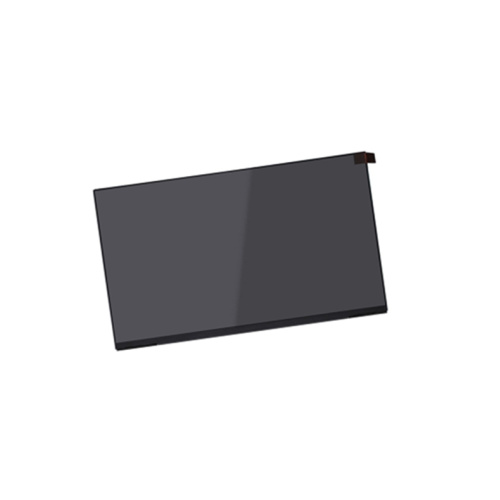

Product Picture:
