G150XJR-L01 Innolux 15.0 inch TFT-LCD

Innolux Corporation (hereafter called Innolux) G150XJR-L01 is a 15.0 inch diagonal a-Si TFT-LCD display screen product, with an incorporated WLED lighting system, without touch screen. This Innolux TFT-LCD is a 15.0 inch with Consumer Lcd Display, it have LCD Controller and Tft Color Screen. G150XJR-L01 supports display 1024(RGB)×768 (XGA) with aspect ratio of 4:3 (W:H), whose pixels are arranged in RGB Vertical Stripe. As for mechanical detail, it features active area of 304.128(W)×228.096(H) mm, with surface treament of Antiglare, Hard coating (3H). As a NPVA, Normally Black, Transmissive LCM product, G150XJR-L01 can provides 350 cd/m² display brightness 2500:1 transimissive contrast ratio, 88/88/88/88 (Typ.)(CR≥10) (L/R/U/D) viewing angle, best view direction on Symmetry , and response time of 16/7 (Typ.)(Tr/Td) ms. Gray scale or the brightness of the sub-pixel is determined with a 6-bit / 8-bit gray scale signal for each dot, thus presenting a palette of 262K/16.7M colors. This product adopted WLED as it's backlight systerm which was placed as Edge light type and have a working life time of 70K hours. It's typical vertical frame rate (Fv) is 60Hz.

We are able to offer AD board for this display to support VGA video input

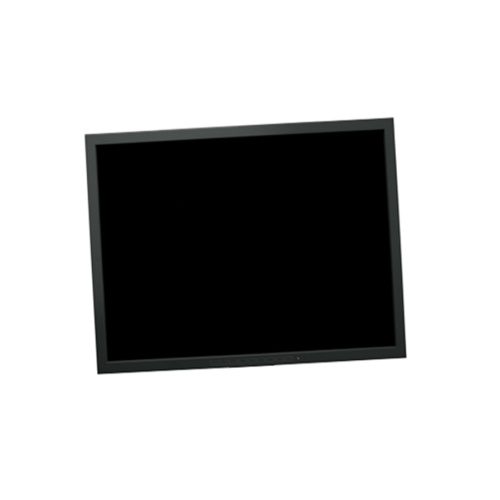

Product Picture:
