G154IJE-L02 Innolux 15.4 inch TFT-LCD
- Payment Type:
- T/T, Paypal, Western Union
- Incoterm:
- FOB, EXW
- Min. Order:
- 1 Piece/Pieces
- Min. Order:
- 1 Piece/Pieces
- Delivery Time:
- 3 Days
- Transportation:
- Ocean, Land, Air
- Port:
- HK, Shenzhen
Your message must be between 20 to 2000 characters
Contact Now| Place of Origin: | TAIWAN |
|---|---|
| Payment Type: | T/T,Paypal,Western Union |
| Incoterm: | FOB,EXW |
| Certificate: | CE,ROHS,ISO9001 |
| Transportation: | Ocean,Land,Air |
| Port: | HK,Shenzhen |
Innolux Corporation (hereafter called Innolux) G154IJE-L02 is a 15.4 inch diagonal a-Si TFT-LCD display panel product, with an integral WLED backlight system, With LED Driver , without touch screen. It features an operating temperature range of -10 ~ 70°C , a storage temperature range of -20 ~ 80°C , This Innolux TFT-LCD is a 15.4 inch with Consumer Lcd Display, it have LCD Controller and Tft Color Screen. G154IJE-L02 supports display 1280(RGB)×800 (WXGA) with aspect ratio of 16:10 (W:H), whose pixels are arranged in RGB Vertical Stripe. As for mechanical detail, it features active area of 331.2(W)×207(H) mm, outline size of 352(W)×230(H)×9.2(D) mm, viewing area size of 334.5(W)×210.3(H) mm, with surface treament of Antiglare, Hard coating (3H), net weight of 920g (Typ.). As a MVA, Normally Black, Transmissive LCM product, G154IJE-L02 can provides 400 cd/m² display brightness 1000:1 transimissive contrast ratio, 88/88/88/88 (Typ.)(CR≥10) (L/R/U/D) viewing angle, best view direction on Symmetry , and response time of 15/10 (Typ.)(Tr/Td) ms. Gray scale or the brightness of the sub-pixel is determined with a 6-bit / 6-bit + FRC gray scale signal for each dot, thus presenting a palette of 262K/16.2M colors, also with performance of color gamut 45% (NTSC). This product adopted 9S5P WLED as it's backlight systerm which was placed as Edge light type and have a working life time of 50K hours, With LED Driver. G154IJE-L02 utilizes LVDS (1 ch, 6/8-bit) as it's signal inputting systerm, which connected by 30 pins Connector with power supply voltage of 3.3V (Typ.). It's typical vertical frame rate (Fv) is 60Hz.
We are able to offer AD board for this display to support VGA video input
Panel Model
G154IJE-L02
Panel Brand
Innolux
Panel Size
15.4"
Panel Type
a-Si TFT-LCD, LCM
Resolution
1280(RGB)×800 , WXGA
Pixel Format
RGB Vertical Stripe
Display Area
331.2(W)×207(H) mm
Bezel Opening
334.5(W)×210.3(H) mm
Outline Size
352(W)×230(H) ×9.2(D) mm
Surface
Antiglare, Hard coating (3H)
Brightness
400 cd/m² (Typ.)
Contrast Ratio
1000:1 (Typ.) (TM)
Viewing Angle
88/88/88/88 (Typ.)(CR≥10)
Display Mode
MVA, Normally Black, Transmissive
Best View on
Symmetry
Response Time
15/10 (Typ.)(Tr/Td)
Display Colors
262K/16.2M 45% NTSC
Lamp Type
9S5P WLED , 50K hours , With LED Driver
Frequency
60Hz
Touch Screen
Without
Panel Weight
920g (Typ.)
Signal Interface
LVDS (1 ch, 6/8-bit) , 30 pins Connector
Input Voltage
3.3V (Typ.)
Environment
Operating Temp.: -10 ~ 70 °C ; Storage Temp.: -20 ~ 80 °C

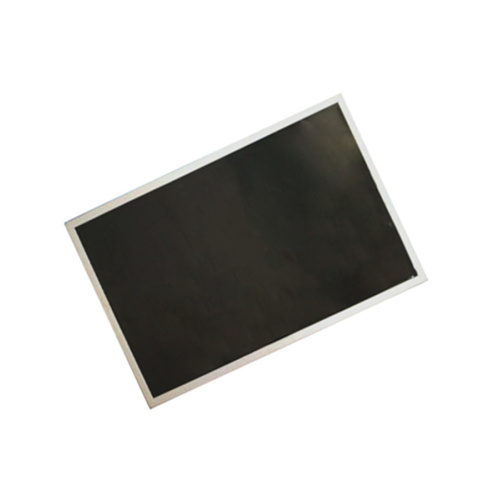

Product Picture:
