G170EGE-L50 Innolux 17.0 inch TFT-LCD
- Payment Type:
- T/T, Paypal, Western Union
- Incoterm:
- FOB, EXW
- Min. Order:
- 1 Piece/Pieces
- Min. Order:
- 1 Piece/Pieces
- Delivery Time:
- 3 Days
- Transportation:
- Ocean, Land, Air
- Port:
- HK, Shenzhen
Your message must be between 20 to 2000 characters
Contact Now| Place of Origin: | TAIWAN |
|---|---|
| Payment Type: | T/T,Paypal,Western Union |
| Incoterm: | FOB,EXW |
| Certificate: | CE,ROHS,ISO9001 |
| Transportation: | Ocean,Land,Air |
| Port: | HK,Shenzhen |
G170EGE-L50 is a 17.0 inch diagonal a-Si TFT-LCD display screen product from Innolux, with a built-in WLED backlight, With LED Driver, without touch screen. This Innolux TFT-LCD is a 17.0 inch with Consumer Lcd Display, it have LCD Controller and Tft Color Screen. On the basis of latest version datasheet Ver0.0 which was released out on 8 29 2017, G170EGE-L50 supports display 1280(RGB)×1024 (SXGA) with aspect ratio of 5:4 (W:H), whose pixels are arranged in RGB Vertical Stripe. As for mechanical detail, it features active area of 337.92(W)×270.336(H) mm, outline size of 358.5(W)×296.5(H)×11(D) mm, viewing area size of 341.9(W)×274.4(H) mm, with surface treament of Antiglare (Haze 25%), Hard coating (3H), net weight of 1.26/1.40/1.47Kgs (Min./Typ./Max.). As a TN, Normally White, Transmissive LCM product, G170EGE-L50 can provides 400 cd/m² display brightness 1000:1 transimissive contrast ratio, 85/85/80/80 (Typ.)(CR≥10) (L/R/U/D) viewing angle , and response time of 1/4 (Typ.)(Tr/Td) ms. Gray scale or the brightness of the sub-pixel is determined with a 8-bit gray scale signal for each dot, thus presenting a palette of 16.7M colors, also with performance of color gamut 90% (NTSC). This product adopted WLED as it's backlight systerm which was placed as Edge light type and have a working life time of 40K hours, With LED Driver. G170EGE-L50 utilizes LVDS (2 ch, 8-bit) as it's signal inputting systerm, which connected by 30 pins Connector with power supply voltage of 5.0V (Typ.). It's typical vertical frame rate (Fv) is 75Hz.
We are able to offer AD board for this display to support VGA video input
Panel Model
G170EGE-L50
Panel Brand
Innolux
Panel Size
17.0"
Resolution
1280(RGB)×1024 , SXGA
Display Area
337.92(W)×270.336(H) mm
Outline Size
358.5(W)×296.5(H) ×11(D) mm
Brightness
400 cd/m² (Typ.)
Viewing Angle
85/85/80/80 (Typ.)(CR≥10)
Display Colors
16.7M 90% NTSC
Frequency
75Hz
Weight
1.26/1.40/1.47Kgs (Min./Typ./Max.)
Panel Type
a-Si TFT-LCD , LCM
Pixel Format
RGB Vertical Stripe
Bezel Opening
341.9(W)×274.4(H) mm
Surface
Antiglare (Haze 25%), Hard coating (3H)
Contrast Ratio
1000:1 (Typ.) (TM)
Display Mode
TN, Normally White, Transmissive
Response Time
1/4 (Typ.)(Tr/Td)
Lamp Type
WLED , 40K hours , With LED Driver
Touch Screen
Without
Signal Interface
LVDS (2 ch, 8-bit) , 30 pins Connector
Input Voltage
5.0V (Typ.)
Environment
Operating Temp.: -30 ~ 80 °C ; Storage Temp.: -40 ~ 85 °C

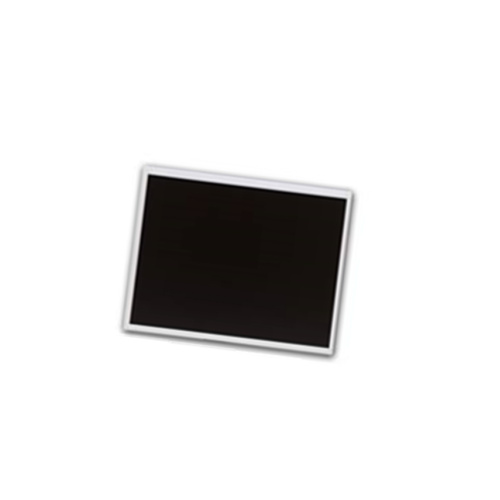

Product Picture:
