M200HJJ-L20 Rev.C4 Innolux 19.5 inch TFT-LCD
- Payment Type:
- T/T, Paypal, Western Union
- Incoterm:
- FOB, EXW
- Min. Order:
- 1 Piece/Pieces
- Min. Order:
- 1 Piece/Pieces
- Delivery Time:
- 3 Days
- Transportation:
- Ocean, Land, Air
- Port:
- HK, Shenzhen
Your message must be between 20 to 2000 characters
Contact Now| Place of Origin: | TAIWAN |
|---|---|
| Payment Type: | T/T,Paypal,Western Union |
| Incoterm: | FOB,EXW |
| Certificate: | CE,ROHS,ISO9001 |
| Transportation: | Ocean,Land,Air |
| Port: | HK,Shenzhen |
Innolux Corporation (hereafter called Innolux) M200HJJ-L20 Rev.C4 is a 19.5 inch diagonal a-Si TFT-LCD display screen product, with an incorporated WLED lighting system, without backlight driver, without touch screen. This Innolux TFT-LCD is a 19.5 inch with Consumer Lcd Display, it have LCD Controller and Tft Color Screen. Based on datasheet with version of Ver3.4 which was released out on 12 2 2015, M200HJJ-L20 Rev.C4 supports display 1920(RGB)×1080 (FHD) with aspect ratio of 16:9 (W:H), whose pixels are arranged in RGB Vertical Stripe. As for mechanical detail, it features active area of 434.88(W)×238.68(H) mm, outline size of 459.8(W)×263(H)×11.82(D) mm, viewing area size of 438.18(W)×241.98(H) mm, with surface treament of Antiglare (Haze 25%), Hard coating (3H), net weight of 1.47±0.08Kgs. As a MVA, Normally Black, Transmissive LCM product, M200HJJ-L20 Rev.C4 can provides 250 cd/m² display brightness 3000:1 transimissive contrast ratio, 89/89/89/89 (Typ.)(CR≥10) (L/R/U/D) viewing angle, best view direction on Symmetry , and response time of 15/5 (Typ.)(Tr/Td) ms. Gray scale or the brightness of the sub-pixel is determined with a 8-bit gray scale signal for each dot, thus presenting a palette of 16.7M colors, also with performance of color gamut 72% (NTSC). This product adopted 4 strings WLED as it's backlight systerm which was placed as Edge light type (Left side) and have a working life time of 30K hours, external backlight driver is additionally needed. M200HJJ-L20 Rev.C4 utilizes LVDS (2 ch, 8-bit) as it's signal inputting systerm, which connected by 30 pins Connector with power supply voltage of 5.0V (Typ.). It's typical vertical frame rate (Fv) is 60Hz.
We are able to offer AD board for this display to support VGA video input
Model
M200HJJ-L20 Rev.C4
Brand
Innolux
Diagonal Size
19.5 inch
Type
a-Si TFT-LCD, LCM
Pixel Format
1920(RGB)×1080 [FHD]
Configuration
RGB Vertical Stripe
Active Area
434.88(H)×238.68(V) mm
Outline Dim.
459.8(H)×263(V) ×11.82(D) mm
Bezel Area
438.18(H)×241.98(V) mm
Treatment
Antiglare (Haze 25%), Hard coating (3H)
Luminance
250 cd/m² (Typ.)
Contrast Ratio
3000:1 (Typ.) (TM)
View Direction
Symmetry
Response Time
15/5 (Typ.)(Tr/Td)
Viewing Angle
89/89/89/89 (Typ.)(CR≥10)
Operating Mode
MVA, Normally Black, Transmissive
Support Color
16.7M 72% NTSC
Light Source
WLED [4 strings] , 30K hours , W/O Driver
Weight
1.47±0.08Kgs
Frame Rate
60Hz
Touch Panel
Without
Interface Type
LVDS (2 ch, 8-bit) , 30 pins Connector
Power Supply
5.0V (Typ.)
Environment
Operating Temperature: 0 ~ 50 °C ; Storage Temperature: -20 ~ 60 °C

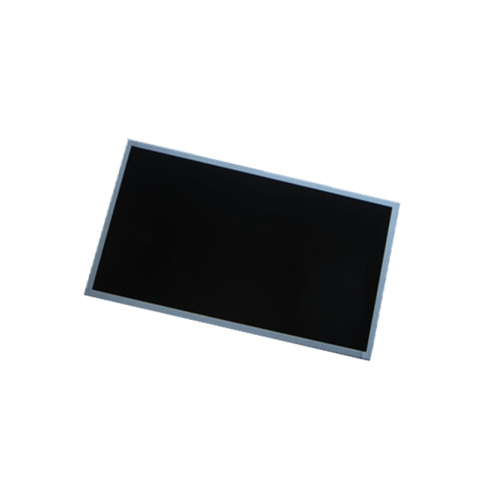

Product Picture:
