M236HJJ-L30 Innolux 23.6 inch TFT-LCD
- Payment Type:
- T/T, Paypal, Western Union
- Incoterm:
- FOB, EXW
- Min. Order:
- 1 Piece/Pieces
- Min. Order:
- 1 Piece/Pieces
- Delivery Time:
- 3 Days
- Transportation:
- Ocean, Land, Air
- Port:
- HK, Shenzhen
Your message must be between 20 to 2000 characters
Contact Now| Place of Origin: | TAIWAN |
|---|---|
| Payment Type: | T/T,Paypal,Western Union |
| Incoterm: | FOB,EXW |
| Certificate: | CE,ROHS,ISO9001 |
| Transportation: | Ocean,Land,Air |
| Port: | HK,Shenzhen |
Innolux Corporation (hereafter called Innolux) M236HJJ-L30 is a 23.6 inch diagonal a-Si TFT-LCD display panel product, with an integral WLED backlight system, without backlight driver, without touch screen. It features an operating temperature range of 0 ~ 50°C , a storage temperature range of -20 ~ 60°C . This Innolux TFT-LCD is a 23.6 inch with Consumer Lcd Display, it have LCD Controller and Tft Color Screen. M236HJJ-L30 supports display 1920(RGB)×1080 (FHD) with aspect ratio of 16:9 (W:H), whose pixels are arranged in RGB Vertical Stripe. As for mechanical detail, it features active area of 521.28(W)×293.22(H) mm, outline size of 544.8(W)×320.5(H)×11.5(D) mm, viewing area size of 525.22(W)×297.22(H) mm, with surface treament of Antiglare (Haze 3%), Hard coating (3H), net weight of 2.31±0.11Kgs. As a Super MVA, Normally Black, Transmissive LCM product, M236HJJ-L30 can provides 250 cd/m² display brightness 3000:1 transimissive contrast ratio, 89/89/89/89 (Typ.)(CR≥10) (L/R/U/D) viewing angle, best view direction on Symmetry , and response time of 10 (Typ.)(G to G) ms. Gray scale or the brightness of the sub-pixel is determined with a 8-bit gray scale signal for each dot, thus presenting a palette of 16.7M colors, also with performance of color gamut 72% (NTSC). This product adopted 4 strings WLED as it's backlight systerm which was placed as Edge light type (Left side) and have a working life time of 30K hours, external backlight driver is additionally needed. M236HJJ-L30 utilizes LVDS (2 ch, 8-bit) as it's signal inputting systerm, which connected by 30 pins Connector with power supply voltage of 5.0V (Typ.). It's typical vertical frame rate (Fv) is 60Hz.
We are able to offer AD board for this display to support VGA video input
Model Name
M236HJJ-L30
Manufacturer
Innolux
Screen Size
23.6 inch
Pixel Number
1920(RGB)×1080 (FHD)
Active Area(mm)
521.28 × 293.22 (H×V)
Bezel Area(mm)
525.22 × 297.22 (H×V)
Luminance
250 (Typ.)(cd/m²)
Viewing Angle
89/89/89/89 (Typ.)(CR≥10)
Good View at
Symmetry
Color Depth
16.7M 72% NTSC
Mass
2.31±0.11Kgs
Refresh Rate
60Hz
Screen Type
LCM , a-Si TFT-LCD
Arrangement
RGB Vertical Stripe
Outline(mm)
544.8 × 320.5 × 11.5 (H×V×D)
Treatment
Antiglare (Haze 3%), Hard coating (3H)
Contrast Ratio
3000 : 1 (Typ.) (TM)
Work Mode
Super MVA, Normally Black, Transmissive
Response
10 (Typ.)(G to G) ms
Backlight
4 strings WLED , 30K hours , No Driver
Touchscreen
Without
Signal Type
LVDS (2 ch, 8-bit) , 30 pins Connector
Voltage Supply
5.0V (Typ.)
Max. Ratings
Storage Temp.: -20 ~ 60 °C Operating Temp.: 0 ~ 50 °C

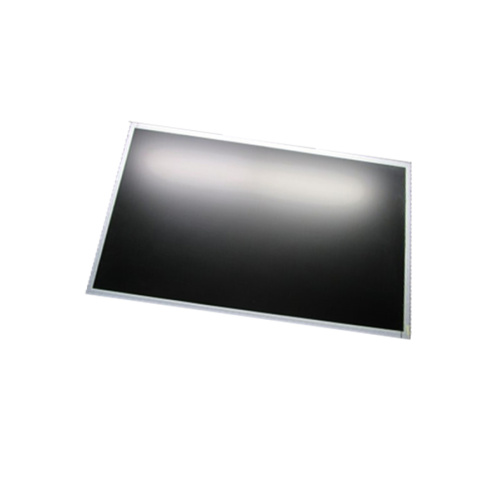

Product Picture:
