V236BJ1-LE2 Innolux 23.6 inch TFT-LCD
- Payment Type:
- T/T, Paypal, Western Union
- Incoterm:
- FOB, EXW
- Min. Order:
- 1 Piece/Pieces
- Min. Order:
- 1 Piece/Pieces
- Delivery Time:
- 3 Days
- Transportation:
- Ocean, Land, Air
- Port:
- HK, Shenzhen
Your message must be between 20 to 2000 characters
Contact Now| Place of Origin: | TAIWAN |
|---|---|
| Payment Type: | T/T,Paypal,Western Union |
| Incoterm: | FOB,EXW |
| Certificate: | CE,ROHS,ISO9001 |
| Transportation: | Ocean,Land,Air |
| Port: | HK,Shenzhen |
V236BJ1-LE2 is a 23.6" diagonal a-Si TFT-LCD display panel product from Innolux Corporation (hereafter called Innolux), with an integral WLED backlight system, without backlight driver, without touch screen. It features an operating temperature range of 0 ~ 50°C , a storage temperature range of -20 ~ 60°C .This Innolux TFT-LCD is a 23.6 inch with Consumer Lcd Display, it have LCD Controller and Tft Color Screen. V236BJ1-LE2 supports display 1366(RGB)×768 (WXGA) with aspect ratio of 16:9 (W:H), whose pixels are arranged in RGB Vertical Stripe. As for mechanical detail, it features active area of 521.471(W)×293.184(H) mm, outline size of 544.8(W)×320.5(H)×12.4(D) mm, viewing area size of 525.22(W)×297.22(H) mm, with surface treament of Antiglare (Haze 1%), Hard coating (3H), net weight of 2.10±0.09Kgs. As a Super MVA, Normally Black, Transmissive LCM product, V236BJ1-LE2 can provides 250 cd/m² display brightness 3000:1 transimissive contrast ratio, 89/89/89/89 (Typ.)(CR≥10) (L/R/U/D) viewing angle, best view direction on Symmetry , and response time of 8.5 (Typ.)(G to G) ms. Gray scale or the brightness of the sub-pixel is determined with a 8-bit gray scale signal for each dot, thus presenting a palette of 16.7M colors, also with performance of color gamut 72% (NTSC). This product adopted WLED as it's backlight systerm which was placed as Edge light type (Right side) and have a working life time of 30K hours, external backlight driver is additionally needed. V236BJ1-LE2 utilizes LVDS (1 ch, 8-bit) as it's signal inputting systerm, which connected by 30 pins Connector with power supply voltage of 12.0V (Typ.). It's typical vertical frame rate (Fv) is 60Hz.
We are able to offer AD board for this display to support VGA video input
Panel Model
V236BJ1-LE2
Panel Brand
Innolux
Panel Size
23.6"
Panel Type
a-Si TFT-LCD, LCM
Resolution
1366(RGB)×768 , WXGA
Pixel Format
RGB Vertical Stripe
Display Area
521.471(W)×293.184(H) mm
Bezel Opening
525.22(W)×297.22(H) mm
Outline Size
544.8(W)×320.5(H) ×12.4(D) mm
Surface
Antiglare (Haze 1%), Hard coating (3H)
Brightness
250 cd/m² (Typ.)
Contrast Ratio
3000:1 (Typ.) (TM)
Viewing Angle
89/89/89/89 (Typ.)(CR≥10)
Display Mode
Super MVA, Normally Black, Transmissive
Best View on
Symmetry
Response Time
8.5 (Typ.)(G to G)
Display Colors
16.7M 72% NTSC
Lamp Type
WLED , 30K hours , Without Driver
Frequency
60Hz
Touch Screen
Without
Panel Weight
2.10±0.09Kgs
Signal Interface
LVDS (1 ch, 8-bit) , 30 pins Connector
Input Voltage
12.0V (Typ.)
Environment
Operating Temp.: 0 ~ 50 °C ; Storage Temp.: -20 ~ 60 °C

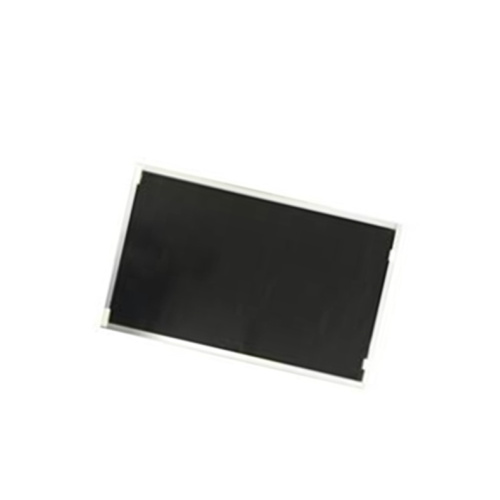

Product Picture:
