V500DJ7-B02 Innolux 50 inch TFT-LCD
- Payment Type:
- T/T, Paypal, Western Union
- Incoterm:
- FOB, EXW
- Min. Order:
- 1 Piece/Pieces
- Min. Order:
- 1 Piece/Pieces
- Delivery Time:
- 3 Days
- Transportation:
- Ocean, Land, Air
- Port:
- HK, Shenzhen
Your message must be between 20 to 2000 characters
Contact Now| Place of Origin: | TAIWAN |
|---|---|
| Payment Type: | T/T,Paypal,Western Union |
| Incoterm: | FOB,EXW |
| Certificate: | CE,ROHS,ISO9001 |
| Transportation: | Ocean,Land,Air |
| Port: | HK,Shenzhen |
Innolux Corporation (hereafter called Innolux) V500DJ7-B02 is a 50 inch diagonal a-Si TFT-LCD display screen product, with an incorporated WLED lighting system, without backlight driver, without touch screen. This Innolux TFT-LCD is a 50.0 inch with Consumer Lcd Display, it have LCD Controller and Tft Color Screen. Based on datasheet with version of Rev.B3_Ver1.0 which was released out on 7 5 2017, V500DJ7-B02 supports display 3840(RGB)×2160 (UHD) with aspect ratio of 16:9 (W:H), whose pixels are arranged in RGB Vertical Stripe. As for mechanical detail, it features active area of 1095.84(W)×616.41(H) mm, outline size of 1119.77(W)×645.94(H) mm, with surface treament of Antiglare (Haze 1%), Hard coating (3H), net weight of TBD. As a Super MVA, Normally Black, Transmissive LCM product, V500DJ7-B02 can provides 350 cd/m² display brightness 5000:1 transimissive contrast ratio, 89/89/89/89 (Min.)(CR≥10) (L/R/U/D) viewing angle, best view direction on Symmetry , and response time of 9.5 (Typ.)(G to G) ms. Gray scale or the brightness of the sub-pixel is determined with a 8-bit + Hi-FRC gray scale signal for each dot, thus presenting a palette of 1.07B colors, also with performance of color gamut 88% (NTSC). This product adopted WLED as it's backlight systerm which was placed as Edge light type and have a working life time of 30K hours, external backlight driver is additionally needed. V500DJ7-B02 utilizes V-by-One 8 lane as it's signal inputting systerm, which connected by 51 pins Connector with power supply voltage of 12.0V (Typ.). It's typical vertical frame rate (Fv) is 60Hz.
We are able to offer AD board for this display to support VGA video input
Model
V500DJ7-B02
Brand
Innolux
Diagonal Size
50 inch
Type
a-Si TFT-LCD, LCM
Pixel Format
3840(RGB)×2160 [UHD]
Configuration
RGB Vertical Stripe
Active Area
1095.84(H)×616.41(V) mm
Outline Dim.
1119.77(H)×645.94(V) mm
Treatment
Antiglare (Haze 1%), Hard coating (3H)
Luminance
350 cd/m² (Typ.)
Contrast Ratio
5000:1 (Typ.) (TM)
View Direction
Symmetry
Response Time
9.5 (Typ.)(G to G)
Viewing Angle
89/89/89/89 (Min.)(CR≥10)
Operating Mode
Super MVA, Normally Black, Transmissive
Support Color
1.07B 88% NTSC
Light Source
WLED , 30K hours , W/O Driver
Weight
TBD
Frame Rate
60Hz
Touch Panel
Without
Interface Type
V-by-One 8 lane , 51 pins Connector
Power Supply
12.0V (Typ.)
Environment
Operating Temperature: 0 ~ 50 °C ; Storage Temperature: -20 ~ 60 °C

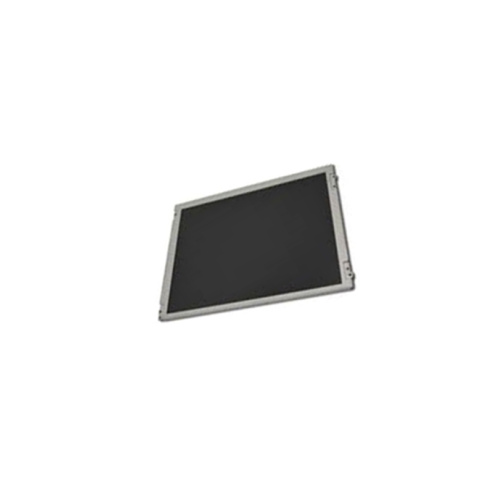

Product Picture:
