G070ACE-LH1 7.0 inch Innolux TFT-LCD
-
$20.00≥1 Piece/Pieces
- Min. Order:
- 1 Piece/Pieces
- Min. Order:
- 1 Piece/Pieces
- Transportation:
- Ocean, Land, Air, Express, Others
- Port:
- HK, Shenzhen
Your message must be between 20 to 2000 characters
Contact Now| Place of Origin: | TAIWAN |
|---|---|
| Payment Type: | T/T,Paypal |
| Incoterm: | FOB,EXW |
| Certificate: | CE,ROHS,ISO9001 |
| Transportation: | Ocean,Land,Air,Express,Others |
| Port: | HK,Shenzhen |
Innolux Corporation (hereafter called Innolux) G070ACE-LH1 is a 7.0 inch diagonal a-Si TFT-LCD display screen product, with an incorporated WLED lighting system, With LED Driver, without touch screen. This Innolux TFT-LCD is a 7.0 inch with Consumer Lcd Display, it have LCD Controller, Backlight Cable and Tft Color Screen,G070ACE-LH1 supports display 800(RGB)×480 (WVGA) with aspect ratio of 15:9 (W:H), whose pixels are arranged in RGB Vertical Stripe. As for mechanical detail, it features active area of 152.4(W)×91.44(H) mm, outline size of 170(W)×110(H)×8.85(D) mm, viewing area size of 154.4(W)×93.44(H) mm, with surface treament of Antiglare, Hard coating (3H), net weight of 183±9g. As a AAS, Normally Black, Transmissive LCM product, G070ACE-LH1 can provides 1000 cd/m² display brightness 800:1 transimissive contrast ratio, 89/89/89/89 (Typ.)(CR≥10) (L/R/U/D) viewing angle, best view direction on Symmetry , and response time of 13/12 (Typ.)(Tr/Td) ms. Gray scale or the brightness of the sub-pixel is determined with a 6-bit / 8-bit gray scale signal for each dot, thus presenting a palette of 262K/16.7M colors, also with performance of color gamut 59% (NTSC). This product adopted WLED as it's backlight systerm which was placed as Edge light type and have a working life time of 50K hours, With LED Driver. G070ACE-LH1 utilizes LVDS (1 ch, 6/8-bit) as it's signal inputting systerm, which connected by 30 pins Connector with power supply voltage of 3.3V (Typ.). It's typical vertical frame rate (Fv) is 60Hz.
We are able to offer AD board for this display to support VGA video input
| Model | G070ACE-LH1 |
| Brand | Innolux |
| Diagonal Size | 7.0 inch |
| Pixel Format | 800(RGB)×480 [WVGA] 133PPI |
| Active Area | 152.4(H)×91.44(V) mm |
| Bezel Area | 154.4(H)×93.44(V) mm |
| Luminance | 1000 cd/m² (Typ.) |
| View Direction | Symmetry |
| Viewing Angle | 89/89/89/89 (Typ.)(CR≥10) |
| Support Color | 262K/16.7M 59% NTSC |
| Weight | 183±9g |
| Frame Rate | 60Hz |
| Type | a-Si TFT-LCD , LCM |
| Configuration | RGB Vertical Stripe |
| Outline Dim. | 170(H)×110(V) ×8.85(D) mm |
| Treatment | Antiglare, Hard coating (3H) |
| Contrast Ratio | 800:1 (Typ.) (TM) |
| Response Time | 13/12 (Typ.)(Tr/Td) |
| Operating Mode | AAS, Normally Black, Transmissive |
| Light Source | WLED , 50K hours , With LED Driver |
| Touch Panel | Without |
| Interface Type | LVDS (1 ch, 6/8-bit) 30 pins Connector |
| Power Supply | 3.3V (Typ.) |
| Environment | Operating Temperature: -30 ~ 80 °C ; Storage Temperature: -30 ~ 85 °C |

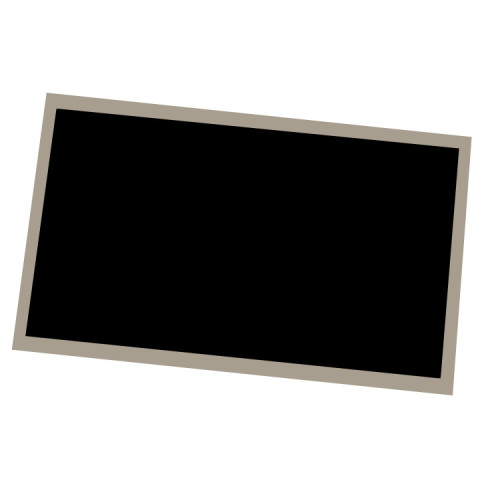

Product Picture:
