G121ICE-L01 12.1 inch Innolux TFT-LCD
-
$20.00≥1 Piece/Pieces
- Min. Order:
- 1 Piece/Pieces
- Min. Order:
- 1 Piece/Pieces
- Transportation:
- Ocean, Land, Air, Express, Others
- Port:
- HK, Shenzhen
Your message must be between 20 to 2000 characters
Contact Now| Place of Origin: | TAIWAN |
|---|---|
| Payment Type: | T/T,Paypal |
| Incoterm: | FOB,EXW |
| Certificate: | CE,ROHS,ISO9001 |
| Transportation: | Ocean,Land,Air,Express,Others |
| Port: | HK,Shenzhen |
G121ICE-L01 is a 12.1 inch diagonal a-Si TFT-LCD display screen product from Innolux, with a built-in WLED backlight, With LED Driver, without touch screen. This Innolux TFT-LCD is a 12.1 inch with Consumer Lcd Display, it have LCD Controller, Backlight Cable and Tft Color Screen, G121ICE-L01 supports display 1280(RGB)×800 (WXGA) with aspect ratio of 16:10 (W:H), whose pixels are arranged in RGB Vertical Stripe. As for mechanical detail, it features active area of 261.12(W)×163.2(H) mm, outline size of 278(W)×184(H)×11(D) mm, viewing area size of 264.12(W)×166.2(H) mm, with surface treament of Antiglare, Hard coating (3H), net weight of 455g (Typ.). As a AAS, Normally Black, Transmissive LCM product, G121ICE-L01 can provides 600 cd/m² display brightness 1000:1 transimissive contrast ratio, 88/88/88/88 (Typ.)(CR≥10) (L/R/U/D) viewing angle, best view direction on Symmetry , and response time of 12/8 (Typ.)(Tr/Td) ms. Gray scale or the brightness of the sub-pixel is determined with a 6-bit / 8-bit gray scale signal for each dot, thus presenting a palette of 262K/16.7M colors, also with performance of color gamut 72% (NTSC). This product adopted WLED as it's backlight systerm which was placed as Edge light type and have a working life time of 50K hours, With LED Driver. G121ICE-L01 utilizes LVDS (1 ch, 6/8-bit) as it's signal inputting systerm, which connected by 30 pins Connector with power supply voltage of 3.3V (Typ.). It's typical vertical frame rate (Fv) is 60Hz.
We are able to offer AD board for this display to support VGA video input
| Model Name | G121ICE-L01 |
| Manufacturer | Innolux |
| Screen Size | 12.1 inch |
| Screen Type | LCM, a-Si TFT-LCD |
| Pixel Number | 1280(RGB)×800 (WXGA) 124PPI |
| Arrangement | RGB Vertical Stripe |
| Active Area(mm) | 261.12 × 163.2 (H×V) |
| Outline(mm) | 278 × 184 × 11 (H×V×D) |
| Bezel Area(mm) | 264.12 × 166.2 (H×V) |
| Treatment | Antiglare, Hard coating (3H) |
| Luminance | 600 cd/m² (Typ.) |
| Contrast Ratio | 1000 : 1 (Typ.) (TM) |
| Viewing Angle | 88/88/88/88 (Typ.)(CR≥10) |
| Response | 12/8 (Typ.)(Tr/Td) ms |
| Good View at | Symmetry |
| Work Mode | AAS, Normally Black, Transmissive |
| Color Depth | 262K/16.7M 72% NTSC |
| Backlight | WLED , 50K hours , With LED Driver |
| Mass | 455g (Typ.) |
| Refresh Rate | 60Hz |
| Touchscreen | Without |
| Signal Type | LVDS (1 ch, 6/8-bit) , Connector 30 pins |
| Voltage Supply | 3.3V (Typ.) |
| Max. Ratings | Storage Temp.: -30 ~ 85 °C Operating Temp.: -30 ~ 80 °C |

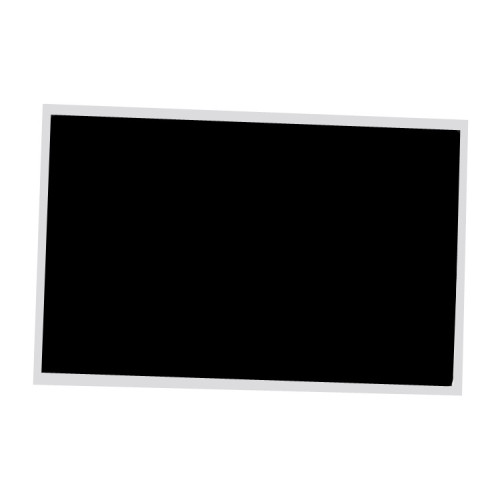

Product Picture:
