N135NCG-GT1 13.5 inch Innolux TFT-LCD

$20.00

≥1 Piece/Pieces

Min. Order:: 1 Piece/Pieces

Min. Order:: 1 Piece/Pieces

Transportation:: Ocean, Land, Air, Express, Others

Port:: HK, Shenzhen

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Place of Origin:	TAIWAN
Payment Type:	T/T,Paypal
Incoterm:	FOB,EXW
Certificate:	CE,ROHS,ISO9001
Transportation:	Ocean,Land,Air,Express,Others
Port:	HK,Shenzhen

Product Description

N135NCG-GT1 (Product Code: CMN13B7) is a 13.5 inch diagonal a-Si TFT-LCD display screen product from Innolux, with a built-in WLED backlight, With LED Driver, without touch screen. This Innolux TFT-LCD is a 13.5 inch with Consumer Lcd Display, it have LCD Controller, Backlight Cable and Tft Color Screen, N135NCG-GT1 supports display 1920(RGB)×1280 with aspect ratio of 15:10 (W:H), whose pixels are arranged in RGB Vertical Stripe. As for mechanical detail, it features active area of 284.89(W)×189.93(H) mm, outline size of 289.89(W)×199.43(H)×3.85(D) mm, with surface treament of Glare (Haze 0%), net weight of 200g (Max.), shape stype of Slim (PCBA Bent, T≤3.0mm). As a AAS, Normally Black, Transmissive LCM product, N135NCG-GT1 can provides 400 cd/m² display brightness 1500:1 transimissive contrast ratio, 89/89/89/89 (Typ.)(CR≥10) (L/R/U/D) viewing angle, best view direction on Symmetry , and response time of 14/16 (Typ.)(Tr/Td) ms. Gray scale or the brightness of the sub-pixel is determined with a 6-bit + Hi-FRC gray scale signal for each dot, thus presenting a palette of 16.7M colors, also with performance of color gamut 100% (sRGB). This product adopted WLED as it's backlight systerm which was placed as Edge light type and have a working life time of 15K hours, With LED Driver. N135NCG-GT1 utilizes eDP (2 Lanes) as it's signal inputting systerm, which connected by 30 pins Connector with power supply voltage of 3.3V (Typ.). It's typical vertical frame rate (Fv) is 60Hz.

We are able to offer AD board for this display to support VGA video input

Panel Model	N135NCG-GT1 (CMN13B7)
Panel Brand	Innolux
Panel Size	13.5"
Resolution	1920(RGB)×1280, 171PPI
Display Area	284.89(W)×189.93(H) mm
Outline Size	289.89(W)×199.43(H) ×3.85(D) mm
Brightness	400 cd/m² (Typ.)
Viewing Angle	89/89/89/89 (Typ.)(CR≥10)
Best View on	Symmetry
Display Colors	16.7M 100% sRGB
Frequency	60Hz
Shape Style	Slim (PCBA Bent, T≤3.0mm)
Panel Type	a-Si TFT-LCD , LCM
Pixel Format	RGB Vertical Stripe
Bezel Opening	-
Surface	Glare (Haze 0%)
Contrast Ratio	1500:1 (Typ.) (TM)
Display Mode	AAS, Normally Black, Transmissive
Response Time	14/16 (Typ.)(Tr/Td)
Lamp Type	WLED , 15K hours , With LED Driver
Touch Screen	Without
Signal Interface	eDP (2 Lanes) , eDP1.4 , 30 pins Connector
Input Voltage	3.3V (Typ.)
Environment	Operating Temp.: 0 ~ 50 °C ; Storage Temp.: -20 ~ 60 °C

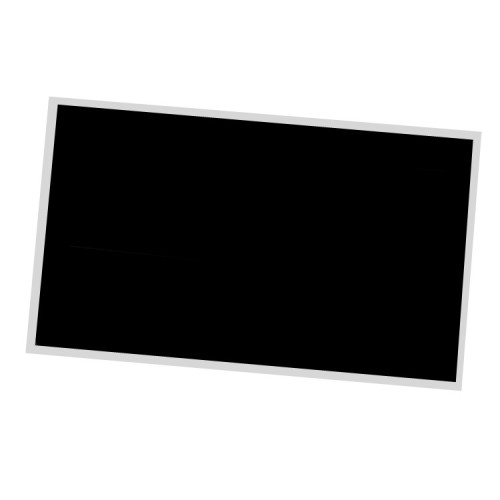

Product Picture:

N135NCG-GT1 (CMN13B7) 13.5 inch Innolux TFT-LCD
