G238HCJ-L02 23.8 inch Innolux TFT-LCD

G238HCJ-L02 is a 23.8 inch diagonal a-Si TFT-LCD display screen product from Innolux, with a built-in WLED backlight, With LED Driver, without touch screen. This Innolux TFT-LCD is a 23.8 inch with Consumer Lcd Display, it have LCD Controller, Backlight Cable and Tft Color Screen. G238HCJ-L02 supports display 1920(RGB)×1080 (FHD) with aspect ratio of 16:9 (W:H), whose pixels are arranged in RGB Vertical Stripe. As for mechanical detail, it features active area of 527.04(W)×296.46(H) mm, outline size of 540.24(W)×315.66(H)×11.95(D) mm, viewing area size of 530.2(W)×299.6(H) mm, with surface treament of Antiglare (Haze 25%), Hard coating (3H), net weight of 2.71Kgs (Typ.). As a AAS, Normally Black, Transmissive LCM product, G238HCJ-L02 can provides 450 cd/m² display brightness 1000:1 transimissive contrast ratio, 89/89/89/89 (Typ.)(CR≥10) (L/R/U/D) viewing angle, best view direction on Symmetry , and response time of 8/7 (Typ.)(Tr/Td) ms. Gray scale or the brightness of the sub-pixel is determined with a 8-bit gray scale signal for each dot, thus presenting a palette of 16.7M colors, also with performance of color gamut 74% (NTSC). This product adopted WLED as it's backlight systerm which was placed as Edge light type and have a working life time of 30K hours, With LED Driver. G238HCJ-L02 utilizes LVDS (2 ch, 8-bit) as it's signal inputting systerm, which connected by 30 pins Connector with power supply voltage of 5.0±0.5V. It's typical vertical frame rate (Fv) is 60Hz.

We are able to offer AD board for this display to support VGA video input.

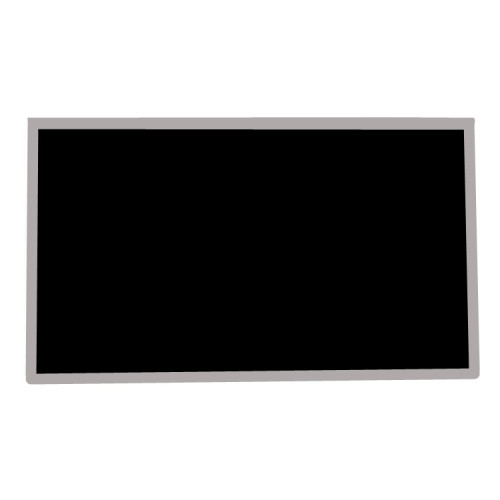

Product Picture:
