AA090MC01 Mitsubishi 9.0 inch TFT-LCD
- Payment Type:
- T/T, Paypal, Western Union
- Incoterm:
- FOB, EXW
- Min. Order:
- 1 Piece/Pieces
- Min. Order:
- 1 Piece/Pieces
- Delivery Time:
- 3 Days
- Transportation:
- Ocean, Land, Air
- Port:
- HK, SHENZHEN
Your message must be between 20 to 2000 characters
Contact Now| Place of Origin: | TAIWAN |
|---|---|
| Payment Type: | T/T,Paypal,Western Union |
| Incoterm: | FOB,EXW |
| Certificate: | CE,ROHS,ISO9001 |
| Transportation: | Ocean,Land,Air |
| Port: | HK,SHENZHEN |
AA090MC01 (Alias: T-55311D090J-FW-A-ABN) is a 9.0 inch diagonal a-Si TFT-LCD display screen product from Mitsubishi, with a built-in CCFL backlight, without backlight driver, without touch screen. This Mitsubishi TFT-LCD is a 9.0 inch with Consumer Lcd Display, it have LCD Controller, Backlight Cable and Tft Color Screen. On the basis of latest version datasheet 20090225 which was released out on 2 25 2009, AA090MC01 supports display 800(RGB)×480 (WVGA) with aspect ratio of 15:9 (W:H), whose pixels are arranged in RGB Vertical Stripe. As for mechanical detail, it features active area of 196.8(W)×118.08(H) mm, outline size of 219(W)×136.2(H)×13.7(D) mm, viewing area size of 199.4(W)×120.7(H) mm, with surface treament of Antiglare, Hard coating (3H), net weight of 480g (Typ.). As a TN, Normally White, Transmissive LCM product, AA090MC01 can provides 600 cd/m² display brightness 600:1 transimissive contrast ratio, 80/80/80/60 (Typ.)(CR≥10) (L/R/U/D) viewing angle, best view direction on 6 o'clock , and response time of 4/12 (Typ.)(Tr/Td) ms. Gray scale or the brightness of the sub-pixel is determined with a 6-bit / 6-bit + Hi-FRC gray scale signal for each dot, thus presenting a palette of 262K/16.7M colors, also with performance of color gamut 40% (NTSC). This product adopted 2 pcs CCFL as it's backlight systerm which was placed as Edge light type (Bottom side) and have a working life time of 50K hours, external backlight driver is additionally needed. AA090MC01 utilizes LVDS (1 ch, 6/8-bit) as it's signal inputting systerm, which connected by 20 pins Connector with power supply voltage of 3.3V (Typ.). It's typical vertical frame rate (Fv) is 60Hz.
We are able to offer AD board for this display to support VGA video input.
|
Panel Model |
AA090MC01 1 Compatible |
|
Panel Brand |
Mitsubishi |
|
Panel Size |
9.0" |
|
Resolution |
800(RGB)×480, WVGA, 103PPI |
|
Display Area |
196.8(W)×118.08(H) mm |
|
Outline Size |
219(W)×136.2(H) ×13.7(D) mm |
|
Brightness |
600 cd/m² (Typ.) |
|
Viewing Angle |
80/80/80/60 (Typ.)(CR≥10) |
|
Best View on |
6 o'clock |
|
Display Colors |
262K/16.7M 40% NTSC |
|
Frequency |
60Hz |
|
Weight |
480g (Typ.) |
|
Panel Type |
a-Si TFT-LCD , LCM |
|
Pixel Format |
RGB Vertical Stripe |
|
Bezel Opening |
199.4(W)×120.7(H) mm |
|
Surface |
Antiglare, Hard coating (3H) |
|
Contrast Ratio |
600:1 (Typ.) (TM) |
|
Display Mode |
TN, Normally White, Transmissive |
|
Response Time |
4/12 (Typ.)(Tr/Td) |
|
Lamp Type |
2 pcs CCFL , 50K hours , Without Driver |
|
Touch Screen |
Without |
|
Signal Interface |
LVDS (1 ch, 6/8-bit) , 20 pins Connector |
|
Input Voltage |
3.3V (Typ.) |
|
Environment |
Operating Temp.: -20 ~ 70 °C ; Storage Temp.: -20 ~ 80 °C |

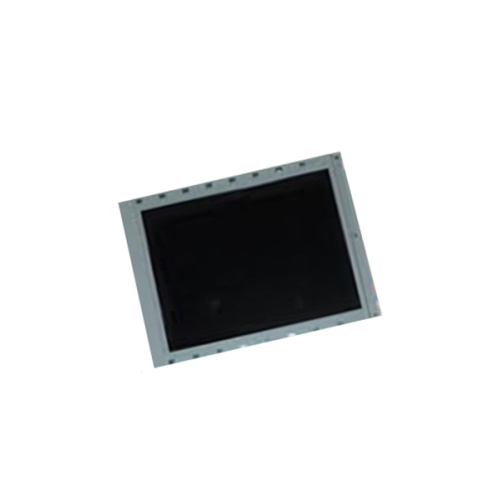

Product Picture:
