AA090TB01-DA2 Mitsubishi 9.0 inch TFT-LCD
- Payment Type:
- T/T, Paypal, Western Union
- Incoterm:
- FOB, EXW
- Min. Order:
- 1 Piece/Pieces
- Min. Order:
- 1 Piece/Pieces
- Delivery Time:
- 3 Days
- Transportation:
- Ocean, Land, Air
- Port:
- HK, SHENZHEN
Your message must be between 20 to 2000 characters
Contact Now| Place of Origin: | TAIWAN |
|---|---|
| Payment Type: | T/T,Paypal,Western Union |
| Incoterm: | FOB,EXW |
| Certificate: | CE,ROHS,ISO9001 |
| Transportation: | Ocean,Land,Air |
| Port: | HK,SHENZHEN |
AA090TB01-DA2 is a 9.0 inch diagonal a-Si TFT-LCD display screen product from Mitsubishi, with a built-in WLED backlight, With LED Driver, touch screen PCAP, Air Bonding. This Mitsubishi TFT-LCD is a 9.0 inch with Consumer Lcd Display, it have LCD Controller, Backlight Cable and Tft Color Screen. On the basis of latest version datasheet 20131028 which was released out on 10 28 2013, AA090TB01-DA2 supports display 1280(RGB)×768 (WXGA) with aspect ratio of 15:9 (W:H), whose pixels are arranged in RGB Vertical Stripe. As for mechanical detail, it features active area of 195.84(W)×117.504(H) mm, outline size of 229(W)×146.2(H)×15.3(D) mm, viewing area size of 198.2(W)×119.5(H) mm, with surface treament of Clear, Hard coating (5H), net weight of 500g (Typ.). As a SWV, Normally Black, Transmissive LCM product, AA090TB01-DA2 can provides 640 cd/m² display brightness 1000:1 transimissive contrast ratio, 85/85/85/85 (Typ.)(CR≥10) (L/R/U/D) viewing angle, best view direction on Symmetry , and response time of 12/12 (Typ.)(Tr/Td) ms. Gray scale or the brightness of the sub-pixel is determined with a 6-bit / 8-bit gray scale signal for each dot, thus presenting a palette of 262K/16.7M colors, also with performance of color gamut 50% (NTSC). This product adopted WLED as it's backlight systerm which was placed as Edge light type and have a working life time of 100K hours, With LED Driver. AA090TB01-DA2 utilizes LVDS (1 ch, 6/8-bit) as it's signal inputting systerm, which connected by 20 pins Connector with power supply voltage of 3.3V (Typ.). It's typical vertical frame rate (Fv) is 60Hz.
We are able to offer AD board for this display to support VGA video input.
|
Model Name |
AA090TB01-DA2 |
|
Manufacturer |
Mitsubishi |
|
Screen Size |
9.0 inch |
|
Screen Type |
LCM, a-Si TFT-LCD |
|
Pixel Number |
1280(RGB)×768 (WXGA) 166PPI |
|
Arrangement |
RGB Vertical Stripe |
|
Active Area(mm) |
195.84 × 117.504 (H×V) |
|
Outline(mm) |
229 × 146.2 × 15.3 (H×V×D) |
|
Bezel Area(mm) |
198.2 × 119.5 (H×V) |
|
Treatment |
Clear, Hard coating (5H) |
|
Luminance |
640 cd/m² (Typ.) |
|
Contrast Ratio |
1000 : 1 (Typ.) (TM) |
|
Viewing Angle |
85/85/85/85 (Typ.)(CR≥10) |
|
Response |
12/12 (Typ.)(Tr/Td) ms |
|
Good View at |
Symmetry |
|
Work Mode |
SWV, Normally Black, Transmissive |
|
Color Depth |
262K/16.7M 50% NTSC |
|
Backlight |
WLED , 100K hours , With LED Driver |
|
Mass |
500g (Typ.) |
|
Refresh Rate |
60Hz |
|
Touchscreen |
PCAP, Air Bonding |
|
Signal Type |
LVDS (1 ch, 6/8-bit) , Connector 20 pins |
|
Voltage Supply |
3.3V (Typ.) |
|
Max. Ratings |
Storage Temp.: -30 ~ 80 °C Operating Temp.: -30 ~ 70 °C |

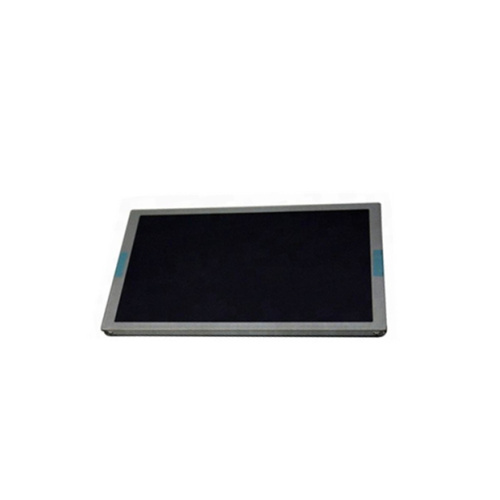

Product Picture:
