AA121TD11-DE1 Mitsubishi 12.1 inch TFT-LCD
- Payment Type:
- T/T, Paypal, Western Union
- Incoterm:
- FOB, EXW
- Min. Order:
- 1 Piece/Pieces
- Min. Order:
- 1 Piece/Pieces
- Delivery Time:
- 3 Days
- Transportation:
- Ocean, Land, Air
- Port:
- HK, SHENZHEN
Your message must be between 20 to 2000 characters
Contact Now| Place of Origin: | TAIWAN |
|---|---|
| Payment Type: | T/T,Paypal,Western Union |
| Incoterm: | FOB,EXW |
| Certificate: | CE,ROHS,ISO9001 |
| Transportation: | Ocean,Land,Air |
| Port: | HK,SHENZHEN |
AA121TD11-DE1 (Alias: AA121TD11-DE-01) is a 12.1 inch diagonal a-Si TFT-LCD display screen product from Mitsubishi, with a built-in WLED backlight, without backlight driver, touch screen PCAP, Air Bonding. This Mitsubishi TFT-LCD is a 12.1 inch with Consumer Lcd Display, it have LCD Controller, Backlight Cable and Tft Color Screen. On the basis of latest version datasheet 20140825 which was released out on 8 25 2014, AA121TD11-DE1 supports display 1280(RGB)×800 (WXGA) with aspect ratio of 16:10 (W:H), whose pixels are arranged in RGB Vertical Stripe. As for mechanical detail, it features active area of 261.12(W)×163.2(H) mm, outline size of 303(W)×205.1(H)×16.3(D) mm, with surface treament of Clear, Hard coating (5H), net weight of 1.05Kgs (Typ.). As a TN, Normally White, Transmissive LCM product, AA121TD11-DE1 can provides 1200 cd/m² display brightness 700:1 transimissive contrast ratio, 80/80/80/60 (Typ.)(CR≥10) (L/R/U/D) viewing angle, best view direction on 6 o'clock , and response time of 4/12 (Typ.)(Tr/Td) ms. Gray scale or the brightness of the sub-pixel is determined with a 6-bit / 6-bit + Hi-FRC gray scale signal for each dot, thus presenting a palette of 262K/16.7M colors, also with performance of color gamut 40% (NTSC). This product adopted 4 strings WLED as it's backlight systerm which was placed as Edge light type and have a working life time of 100K hours, external backlight driver is additionally needed. AA121TD11-DE1 utilizes LVDS (1 ch, 6/8-bit) as it's signal inputting systerm, which connected by 20 pins Connector with power supply voltage of 3.3V (Typ.). It's typical vertical frame rate (Fv) is 60Hz.
We are able to offer AD board for this display to support VGA video input.
|
Model |
AA121TD11-DE1 |
|
Brand |
Mitsubishi |
|
Diagonal Size |
12.1 inch |
|
Type |
a-Si TFT-LCD, LCM |
|
Pixel Format |
1280(RGB)×800 [WXGA] 124PPI |
|
Configuration |
RGB Vertical Stripe |
|
Active Area |
261.12(H)×163.2(V) mm |
|
Outline Dim. |
303(H)×205.1(V) ×16.3(D) mm |
|
Treatment |
Clear, Hard coating (5H) |
|
Luminance |
1200 cd/m² (Typ.) |
|
Contrast Ratio |
700:1 (Typ.) (TM) |
|
View Direction |
6 o'clock |
|
Response Time |
4/12 (Typ.)(Tr/Td) |
|
Viewing Angle |
80/80/80/60 (Typ.)(CR≥10) |
|
Operating Mode |
TN, Normally White, Transmissive |
|
Support Color |
262K/16.7M 40% NTSC |
|
Light Source |
WLED [4 strings] , 100K hours , W/O Driver |
|
Weight |
1.05Kgs (Typ.) |
|
Frame Rate |
60Hz |
|
Touch Panel |
PCAP, Air Bonding |
|
Interface Type |
LVDS (1 ch, 6/8-bit) , 20 pins Connector |
|
Power Supply |
3.3V (Typ.) |
|
Environment |
Operating Temperature: -30 ~ 70 °C ; Storage Temperature: -30 ~ 80 °C |

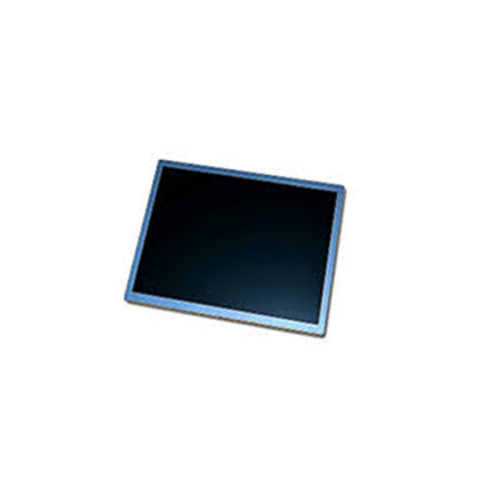

Product Picture:
