AA104XF12-DE2 Mitsubishi 10.4 inch TFT-LCD

Get Latest Price

Payment Type:: T/T, Paypal, Western Union

Incoterm:: FOB, EXW

Min. Order:: 1 Piece/Pieces

Min. Order:: 1 Piece/Pieces

Delivery Time:: 3 Days

Transportation:: Ocean, Land, Air

Port:: HK, SHENZHEN

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Place of Origin:	TAIWAN
Payment Type:	T/T,Paypal,Western Union
Incoterm:	FOB,EXW
Certificate:	CE,ROHS,ISO9001
Transportation:	Ocean,Land,Air
Port:	HK,SHENZHEN

Product Description

AA104XF12-DE2 is a 10.4 inch diagonal a-Si TFT-LCD display screen product from Mitsubishi, with a built-in WLED backlight, without backlight driver, touch screen PCAP, Air Bonding. This Mitsubishi TFT-LCD is a 10.4 inch with Consumer Lcd Display, it have LCD Controller, Backlight Cable and Tft Color Screen. On the basis of latest version datasheet 20140825 which was released out on 8 25 2014, AA104XF12-DE2 supports display 1024(RGB)×768 (XGA) with aspect ratio of 4:3 (W:H), whose pixels are arranged in RGB Vertical Stripe. As for mechanical detail, it features active area of 210.4(W)×157.8(H) mm, outline size of 240.6(W)×190.8(H)×16(D) mm, viewing area size of 212.2(W)×159.4(H) mm, with surface treament of Clear, Hard coating (5H), net weight of 780g (Typ.). As a TN, Normally White, Transmissive LCM product, AA104XF12-DE2 can provides 800 cd/m² display brightness 700:1 transimissive contrast ratio, 80/80/80/80 (Typ.)(CR≥10) (L/R/U/D) viewing angle , and response time of 4/12 (Typ.)(Tr/Td) ms. Gray scale or the brightness of the sub-pixel is determined with a 6-bit / 8-bit gray scale signal for each dot, thus presenting a palette of 262K/16.7M colors, also with performance of color gamut 40% (NTSC). This product adopted WLED as it's backlight systerm which was placed as Edge light type and have a working life time of 100K hours, external backlight driver is additionally needed. AA104XF12-DE2 utilizes LVDS (1 ch, 6/8-bit) as it's signal inputting systerm, which connected by 20 pins Connector with power supply voltage of 3.3V (Typ.). It's typical vertical frame rate (Fv) is 60Hz.

We are able to offer AD board for this display to support VGA video input.

Model	AA104XF12-DE2
Brand	Mitsubishi
Diagonal Size	10.4 inch
Type	a-Si TFT-LCD, LCM
Pixel Format	1024(RGB)×768 [XGA] 123PPI
Configuration	RGB Vertical Stripe
Active Area	210.4(H)×157.8(V) mm
Outline Dim.	240.6(H)×190.8(V) ×16(D) mm
Bezel Area	212.2(H)×159.4(V) mm
Treatment	Clear, Hard coating (5H)
Luminance	800 cd/m² (Typ.)
Contrast Ratio	700:1 (Typ.) (TM)
Response Time	4/12 (Typ.)(Tr/Td)
Viewing Angle	80/80/80/80 (Typ.)(CR≥10)
Operating Mode	TN, Normally White, Transmissive
Support Color	262K/16.7M 40% NTSC
Light Source	WLED , 100K hours , W/O Driver
Weight	780g (Typ.)
Frame Rate	60Hz
Touch Panel	PCAP, Air Bonding
Interface Type	LVDS (1 ch, 6/8-bit) , 20 pins Connector
Power Supply	3.3V (Typ.)
Environment	Operating Temperature: -30 ~ 70 °C ; Storage Temperature: -30 ~ 80 °C

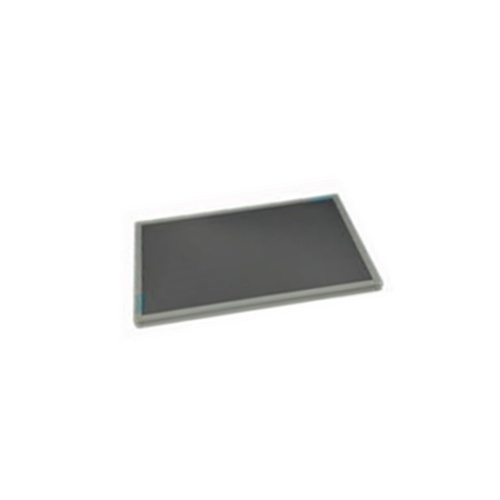

Product Picture:

AA104XF12-DE2
