AA070MC01ADA11 Mitsubishi 7.0 inch TFT-LCD
- Payment Type:
- T/T, Paypal, Western Union
- Incoterm:
- FOB, EXW
- Min. Order:
- 1 Piece/Pieces
- Min. Order:
- 1 Piece/Pieces
- Delivery Time:
- 3 Days
- Transportation:
- Ocean, Land, Air
- Port:
- HK, SHENZHEN
Your message must be between 20 to 2000 characters
Contact Now| Place of Origin: | TAIWAN |
|---|---|
| Payment Type: | T/T,Paypal,Western Union |
| Incoterm: | FOB,EXW |
| Certificate: | CE,ROHS,ISO9001 |
| Transportation: | Ocean,Land,Air |
| Port: | HK,SHENZHEN |
Mitsubishi Electric Corporation (hereafter called Mitsubishi) AA070MC01ADA11 is a 7.0 inch diagonal a-Si TFT-LCD display screen product, with an incorporated WLED lighting system, With LED Driver, touch screen PCAP, Air Bonding. This Mitsubishi TFT-LCD is a 7.0 inch with Consumer Lcd Display, it have LCD Controller, Backlight Cable and Tft Color Screen. AA070MC01ADA11 supports display 800(RGB)×480 (WVGA) with aspect ratio of 15:9 (W:H), whose pixels are arranged in RGB Vertical Stripe. As for mechanical detail, it features active area of 152.4(W)×91.44(H) mm, outline size of 189.8(W)×129.7(H) mm, with surface treament of Clear. As a SWV, Normally Black, Transmissive LCM product, AA070MC01ADA11 can provides 800 cd/m² display brightness 1000:1 transimissive contrast ratio, 85/85/85/85 (Typ.)(CR≥10) (L/R/U/D) viewing angle, best view direction on Symmetry , and response time of 12/12 (Typ.)(Tr/Td) ms. Gray scale or the brightness of the sub-pixel is determined with a 6-bit / 8-bit gray scale signal for each dot, thus presenting a palette of 262K/16.7M colors, also with performance of color gamut 50% (NTSC). This product adopted WLED as it's backlight systerm which was placed as Edge light type and have a working life time of 100K hours, With LED Driver. AA070MC01ADA11 utilizes LVDS (1 ch, 6/8-bit) as it's signal inputting systerm, which connected by 20 pins Connector with power supply voltage of 3.3V (Typ.). It's typical vertical frame rate (Fv) is 60Hz.
We are able to offer AD board for this display to support VGA video input.
|
Model Name |
AA070MC01ADA11 |
|
Manufacturer |
Mitsubishi |
|
Screen Size |
7.0 inch |
|
Pixel Number |
800(RGB)×480 (WVGA) 133PPI |
|
Active Area(mm) |
152.4 × 91.44 (H×V) |
|
Luminance |
800 (Typ.)(cd/m²) |
|
Viewing Angle |
85/85/85/85 (Typ.)(CR≥10) |
|
Good View at |
Symmetry |
|
Color Depth |
262K/16.7M 50% NTSC |
|
Refresh Rate |
60Hz |
|
Screen Type |
LCM , a-Si TFT-LCD |
|
Arrangement |
RGB Vertical Stripe |
|
Outline(mm) |
189.8 × 129.7 (H×V×D) |
|
Treatment |
Clear |
|
Contrast Ratio |
1000 : 1 (Typ.) (TM) |
|
Work Mode |
SWV, Normally Black, Transmissive |
|
Response |
12/12 (Typ.)(Tr/Td) ms |
|
Backlight |
WLED , 100K hours , With LED Driver |
|
Touchscreen |
PCAP, Air Bonding |
|
Signal Type |
LVDS (1 ch, 6/8-bit) , 20 pins Connector |
|
Voltage Supply |
3.3V (Typ.) |
|
Max. Ratings |
Storage Temp.: -30 ~ 80 °C Operating Temp.: -30 ~ 70 °C |

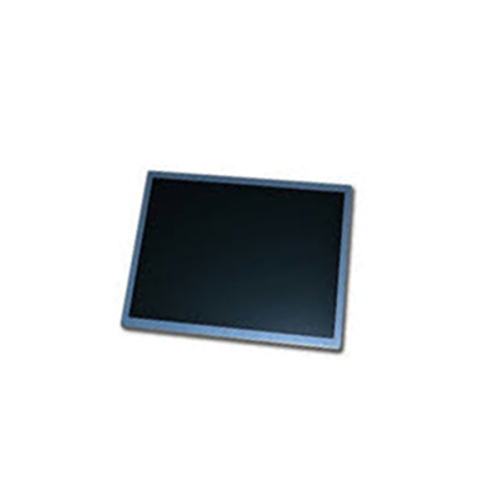

Product Picture:
