AA070MC52 Mitsubishi 7.0 inch TFT-LCD

Get Latest Price

Payment Type:: T/T, Paypal, Western Union

Incoterm:: FOB, EXW

Min. Order:: 1 Piece/Pieces

Min. Order:: 1 Piece/Pieces

Delivery Time:: 3 Days

Transportation:: Ocean, Land, Air

Port:: HK, SHENZHEN

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Place of Origin:	TAIWAN
Payment Type:	T/T,Paypal,Western Union
Incoterm:	FOB,EXW
Certificate:	CE,ROHS,ISO9001
Transportation:	Ocean,Land,Air
Port:	HK,SHENZHEN

Product Description

AA070MC52 is a 7.0 inch diagonal a-Si TFT-LCD display screen product from Mitsubishi, with a built-in WLED backlight, without backlight driver, without touch screen. This Mitsubishi TFT-LCD is a 7.0 inch with Consumer Lcd Display, it have LCD Controller, Backlight Cable and Tft Color Screen. AA070MC52 supports display 480×800(RGB) (WVGA) with aspect ratio of 3:5 (W:H), whose pixels are arranged in RGB Horizontal Stripe. As for mechanical detail, it features active area of 91.44(W)×152.4(H) mm, outline size of 109.7(W)×169.8(H)×9.4(D) mm, viewing area size of 95.5(W)×156.4(H) mm, with surface treament of Clear, Hard coating (3H), net weight of 200g (Typ.). As a SWV, Normally Black, Transmissive LCM product, AA070MC52 can provides 1200 cd/m² display brightness 1000:1 transimissive contrast ratio, 85/85/85/85 (Typ.)(CR≥10) (L/R/U/D) viewing angle, best view direction on Symmetry , and response time of 12/12 (Typ.)(Tr/Td) ms. Gray scale or the brightness of the sub-pixel is determined with a 6-bit / 8-bit gray scale signal for each dot, thus presenting a palette of 262K/16.7M colors, also with performance of color gamut 50% (NTSC). This product adopted 2 strings WLED as it's backlight systerm which was placed as Edge light type and have a working life time of 100K hours, external backlight driver is additionally needed. AA070MC52 utilizes LVDS (1 ch, 6/8-bit) as it's signal inputting systerm, which connected by 20 pins Connector with power supply voltage of 3.3V (Typ.). It's typical vertical frame rate (Fv) is 60Hz.

We are able to offer AD board for this display to support VGA video input.

Model Name	AA070MC52
Manufacturer	Mitsubishi
Screen Size	7.0 inch
Pixel Number	480×800(RGB) (WVGA) 133PPI
Active Area(mm)	91.44 × 152.4 (H×V)
Bezel Area(mm)	95.5 × 156.4 (H×V)
Luminance	1200 (Typ.)(cd/m²)
Viewing Angle	85/85/85/85 (Typ.)(CR≥10)
Good View at	Symmetry
Color Depth	262K/16.7M 50% NTSC
Mass	200g (Typ.)
Refresh Rate	60Hz
Screen Type	LCM , a-Si TFT-LCD
Arrangement	RGB Horizontal Stripe
Outline(mm)	109.7 × 169.8 × 9.4 (H×V×D)
Treatment	Clear, Hard coating (3H)
Contrast Ratio	1000 : 1 (Typ.) (TM)
Work Mode	SWV, Normally Black, Transmissive
Response	12/12 (Typ.)(Tr/Td) ms
Backlight	2 strings WLED , 100K hours , No Driver
Touchscreen	Without
Signal Type	LVDS (1 ch, 6/8-bit) , 20 pins Connector
Voltage Supply	3.3V (Typ.)
Max. Ratings	Storage Temp.: -30 ~ 80 °C Operating Temp.: -30 ~ 80 °C

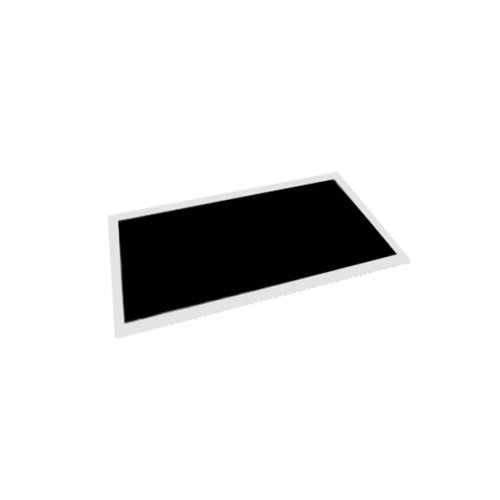

Product Picture:

AA070MC52
