PD035VX2 PVI 3.5 inch TFT-LCD

Get Latest Price

Payment Type:: T/T, Paypal, Western Union

Incoterm:: FOB, CIF, EXW

Min. Order:: 1 Bag/Bags

Min. Order:: 1 Bag/Bags

Delivery Time:: 3 Days

Transportation:: Ocean, Land, Air

Port:: SHENZHEN, SHENZHEN, SHENZHEN

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Payment Type:	T/T,Paypal,Western Union
Incoterm:	FOB,CIF,EXW
Transportation:	Ocean,Land,Air
Port:	SHENZHEN,SHENZHEN,SHENZHEN

Product Description

Prime View International Co., Ltd. (hereafter called PVI) PD035VX2 is a 3.5 inch diagonal a-Si TFT-LCD display panel product, with an integral WLED backlight system, without backlight driver, without touch screen. It features an operating temperature range of -20 ~ 70°C , a storage temperature range of -30 ~ 70°C .This PVI TFT-LCD is a 3.5 inch with Consumer Lcd Display, it have LCD Controller, Backlight Cable and Tft Color Screen. PD035VX2 supports display 640(RGB)×480 (VGA) with aspect ratio of 4:3 (W:H), whose pixels are arranged in RGB Vertical Stripe. As for mechanical detail, it features active area of 72(W)×52.56(H) mm, outline size of 84.03(W)×65.24(H) mm, viewing area size of 75.2(W)×55.56(H) mm, with surface treament of Antiglare, net weight of 40.0±5.0g. As a TN, Normally White, Transmissive LCM product, PD035VX2 can provides 450 cd/m² display brightness 600:1 transimissive contrast ratio, 75/75/50/60 (Typ.)(CR≥10) (L/R/U/D) viewing angle , and response time of 15/25 (Typ.)(Tr/Td) ms. Gray scale or the brightness of the sub-pixel is determined with a 6-bit gray scale signal for each dot, thus presenting a palette of 262K colors. This product adopted 3S2P WLED as it's backlight systerm which was placed as Edge light type and have a working life time of 30K hours, external backlight driver is additionally needed. PD035VX2 utilizes TTL (1 ch, 6-bit) as it's signal inputting systerm, which connected by 50 pins FPC with power supply voltage of 3.3/3.3/10/17/-10V (Typ.)(VCC/VDD/VDD1/VCG/VEE). It's typical vertical frame rate (Fv) is 60Hz.

We are able to offer AD board for this display to support VGA video input.

Panel Model	PD035VX2
Panel Brand	PVI
Panel Size	3.5"
Resolution	640(RGB)×480, VGA, 227PPI
Display Area	72(W)×52.56(H) mm
Outline Size	84.03(W)×65.24(H) mm
Brightness	450 cd/m² (Typ.)
Viewing Angle	75/75/50/60 (Typ.)(CR≥10)
Display Colors	262K
Frequency	60Hz
Weight	40.0±5.0g
Panel Type	a-Si TFT-LCD , LCM
Pixel Format	RGB Vertical Stripe
Bezel Opening	75.2(W)×55.56(H) mm
Surface	Antiglare
Contrast Ratio	600:1 (Typ.) (TM)
Display Mode	TN, Normally White, Transmissive
Response Time	15/25 (Typ.)(Tr/Td)
Lamp Type	3S2P WLED , 30K hours , Without Driver
Touch Screen	Without
Signal Interface	TTL (1 ch, 6-bit) , 50 pins FPC
Input Voltage	3.3/3.3/10/17/-10V (Typ.)(VCC/VDD/VDD1/VCG/VEE)
Environment	Operating Temp.: -20 ~ 70 °C ; Storage Temp.: -30 ~ 70 °C

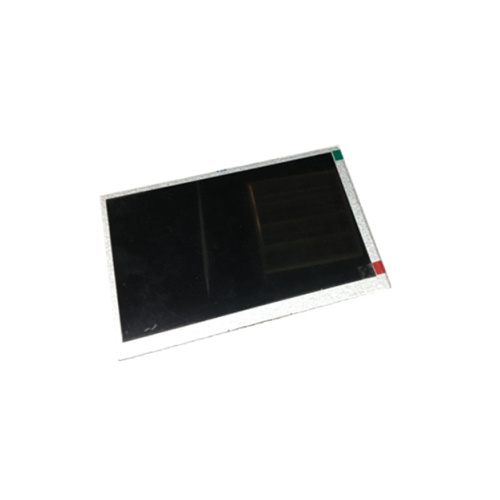

Product Picture:

PD035VX2
