PD035VX3 PVI 3.5 inch TFT-LCD

Get Latest Price

Payment Type:: T/T, Paypal, Western Union

Incoterm:: FOB, CIF, EXW

Min. Order:: 1 Bag/Bags

Min. Order:: 1 Bag/Bags

Delivery Time:: 3 Days

Transportation:: Ocean, Land, Air

Port:: SHENZHEN, SHENZHEN, SHENZHEN

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Payment Type:	T/T,Paypal,Western Union
Incoterm:	FOB,CIF,EXW
Transportation:	Ocean,Land,Air
Port:	SHENZHEN,SHENZHEN,SHENZHEN

Product Description

PD035VX3 is a 3.5 inch diagonal a-Si TFT-LCD display screen product from PVI, with a built-in WLED backlight, without backlight driver, touch screen 4-wire Resistive Touch. This PVI TFT-LCD is a 3.5 inch with Consumer Lcd Display, it have LCD Controller, Backlight Cable and Tft Color Screen. On the basis of latest version datasheet Ver6.0 which was released out on 9 3 2009, PD035VX3 supports display 640(RGB)×480 (VGA) with aspect ratio of 4:3 (W:H), whose pixels are arranged in RGB Vertical Stripe. As for mechanical detail, it features active area of 72(W)×52.56(H) mm, outline size of 84.03(W)×65.24(H) mm, viewing area size of 75.2(W)×55.56(H) mm, with surface treament of Antiglare, Hard coating (3H), net weight of 52.0±5.0g. As a TN, Normally White, Transmissive LCM product, PD035VX3 can provides 200 cd/m² display brightness 400:1 transimissive contrast ratio, 50/50/15/35 (Typ.)(CR≥10) (L/R/U/D) viewing angle , and response time of 15/25 (Typ.)(Tr/Td) ms. Gray scale or the brightness of the sub-pixel is determined with a 6-bit gray scale signal for each dot, thus presenting a palette of 262K colors. This product adopted 3S2P WLED as it's backlight systerm which was placed as Edge light type and have a working life time of 30K hours, external backlight driver is additionally needed. PD035VX3 utilizes TTL (1 ch, 6-bit) as it's signal inputting systerm, which connected by 50 pins FPC with power supply voltage of 3.3/3.3/10/17/-10V (Typ.)(VCC/VDD1/VDD2/VCG/VEE). It's typical vertical frame rate (Fv) is 60Hz.

We are able to offer AD board for this display to support VGA video input.

Model Name	PD035VX3
Manufacturer	PVI
Screen Size	3.5 inch
Screen Type	LCM , a-Si TFT-LCD
Pixel Number	640(RGB)×480 (VGA) 227PPI
Arrangement	RGB Vertical Stripe
Active Area(mm)	72 × 52.56 (H×V)
Outline(mm)	84.03 × 65.24 (H×V×D)
Bezel Area(mm)	75.2 × 55.56 (H×V)
Treatment	Antiglare, Hard coating (3H)
Luminance	200 cd/m² (Typ.)
Contrast Ratio	400 : 1 (Typ.) (TM)
Viewing Angle	50/50/15/35 (Typ.)(CR≥10)
Response	15/25 (Typ.)(Tr/Td) ms
Work Mode	TN, Normally White, Transmissive
Color Depth	262K
Backlight	3S2P WLED , 30K hours , No Driver
Mass	52.0±5.0g
Refresh Rate	60Hz
Touchscreen	4-wire Resistive Touch
Signal Type	TTL (1 ch, 6-bit) , 50 pins FPC
Voltage Supply	3.3/3.3/10/17/-10V (Typ.)(VCC/VDD1/VDD2/VCG/VEE)
Max. Ratings	Storage Temp.: -30 ~ 80 °C Operating Temp.: -20 ~ 70 °C

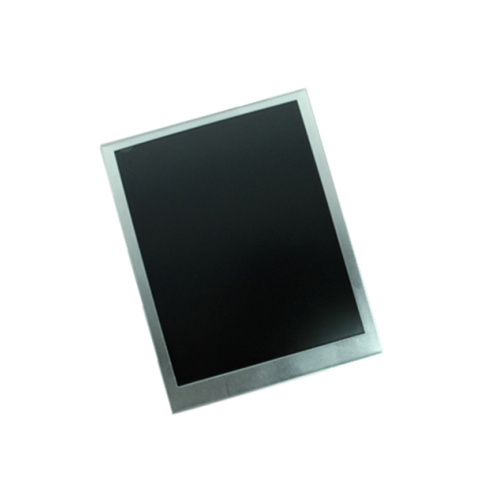

Product Picture:

PD035VX3
