PD050VX2 PVI 5.0 inch TFT-LCD

Get Latest Price

Payment Type:: T/T, Paypal, Western Union

Incoterm:: FOB, CIF, EXW

Min. Order:: 1 Bag/Bags

Min. Order:: 1 Bag/Bags

Delivery Time:: 3 Days

Transportation:: Ocean, Land, Air

Port:: SHENZHEN, SHENZHEN, SHENZHEN

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Place of Origin:	TAIWAN
Payment Type:	T/T,Paypal,Western Union
Incoterm:	FOB,CIF,EXW
Certificate:	CE,ROHS,ISO9001
Transportation:	Ocean,Land,Air
Port:	SHENZHEN,SHENZHEN,SHENZHEN

Product Description

PD050VX2 is a 5.0" diagonal a-Si TFT-LCD display panel product from Prime View International Co., Ltd. (hereafter called PVI), with an integral CCFL backlight system, without backlight driver, without touch screen. It features an operating temperature range of -20 ~ 70°C , a storage temperature range of -30 ~ 80°C .This PVI TFT-LCD is a 5.0 inch with Consumer Lcd Display, it have LCD Controller, Backlight Cable and Tft Color Screen. PD050VX2 supports display 480×640(RGB) (VGA) with aspect ratio of 3:4 (W:H), whose pixels are arranged in RGB Horizontal Stripe. As for mechanical detail, it features active area of 74.88(W)×101.76(H) mm, outline size of 91.4(W)×119.3(H)×8.2(D) mm, viewing area size of 78.50(W)×106.7(H) mm, with surface treament of Antiglare, net weight of 120±10g. As a TN, Normally White, Transmissive LCM product, PD050VX2 can provides 400 cd/m² display brightness 400:1 transimissive contrast ratio, 60/60/35/50 (Typ.)(CR≥10) (L/R/U/D) viewing angle, best view direction on 6 o'clock , and response time of 15/25 (Typ.)(Tr/Td) ms. Gray scale or the brightness of the sub-pixel is determined with a 6-bit gray scale signal for each dot, thus presenting a palette of 262K colors. This product adopted 1 pcs CCFL as it's backlight systerm and have a working life time of 50K hours, external backlight driver is additionally needed. PD050VX2 utilizes TTL (1 ch, 6-bit) as it's signal inputting systerm, which connected by 60 pins FPC with power supply voltage of 3.3/3.3/9.5/19.0/-10.0V (Typ.)(VCC/VDD1/VDD2/VGG/VEE).

We are able to offer AD board for this display to support VGA video input.

Panel Model	PD050VX2
Panel Brand	PVI
Panel Size	5.0"
Panel Type	a-Si TFT-LCD, LCM
Resolution	480×640(RGB), VGA, 160PPI
Pixel Format	RGB Horizontal Stripe
Display Area	74.88(W)×101.76(H) mm
Bezel Opening	78.50(W)×106.7(H) mm
Outline Size	91.4(W)×119.3(H) ×8.2(D) mm
Surface	Antiglare
Brightness	400 cd/m² (Typ.)
Contrast Ratio	400:1 (Typ.) (TM)
Viewing Angle	60/60/35/50 (Typ.)(CR≥10)
Display Mode	TN, Normally White, Transmissive
Best View on	6 o'clock
Response Time	15/25 (Typ.)(Tr/Td)
Display Colors	262K
Lamp Type	1 pcs CCFL , 50K hours , Without Driver
Touch Screen	Without
Panel Weight	120±10g
Signal Interface	TTL (1 ch, 6-bit) , 60 pins FPC
Input Voltage	3.3/3.3/9.5/19.0/-10.0V (Typ.)(VCC/VDD1/VDD2/VGG/VEE)
Environment	Operating Temp.: -20 ~ 70 °C ; Storage Temp.: -30 ~ 80 °C

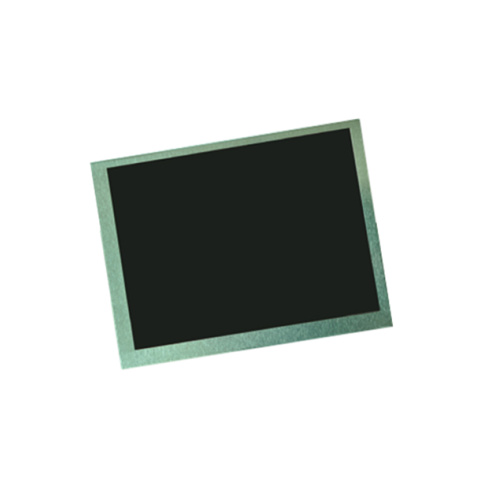

Product Picture:

PD050VX2
