PD064VT5 PVI 6.4 inch TFT-LCD

Get Latest Price

Payment Type:: T/T, Paypal, Western Union

Incoterm:: FOB, CIF, EXW

Min. Order:: 1 Bag/Bags

Min. Order:: 1 Bag/Bags

Delivery Time:: 3 Days

Transportation:: Ocean, Land, Air

Port:: SHENZHEN, SHENZHEN, SHENZHEN

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Place of Origin:	TAIWAN
Payment Type:	T/T,Paypal,Western Union
Incoterm:	FOB,CIF,EXW
Certificate:	CE,ROHS,ISO9001
Transportation:	Ocean,Land,Air
Port:	SHENZHEN,SHENZHEN,SHENZHEN

Product Description

PD064VT5 is a 6.4 inch diagonal a-Si TFT-LCD display screen product from PVI, with a built-in CCFL backlight, without backlight driver, without touch screen. This PVI TFT-LCD is a 6.4 inch with Consumer Lcd Display, it have LCD Controller, Backlight Cable and Tft Color Screen. On the basis of latest version datasheet Ver1.5 which was released out on 5 23 2005, PD064VT5 supports display 640(RGB)×480 (VGA) with aspect ratio of 4:3 (W:H), whose pixels are arranged in RGB Vertical Stripe. As for mechanical detail, it features active area of 129.6(W)×97.44(H) mm, outline size of 175.4(W)×126.9(H) mm, viewing area size of 134.8(W)×101.8(H) mm, with surface treament of Antiglare, net weight of 340±10g. As a TN, Normally White, Transmissive LCM product, PD064VT5 can provides 400 cd/m² display brightness 400:1 transimissive contrast ratio, 50/50/15/35 (Typ.)(CR≥10) (L/R/U/D) viewing angle, best view direction on 6 o'clock , and response time of 15/25 (Typ.)(Tr/Td) ms. Gray scale or the brightness of the sub-pixel is determined with a 6-bit gray scale signal for each dot, thus presenting a palette of 262K colors. This product adopted 2 pcs CCFL as it's backlight systerm which was placed as Edge light type (Top and Bottom) and have a working life time of 50K hours, external backlight driver is additionally needed. PD064VT5 utilizes TTL (1 ch, 6-bit) as it's signal inputting systerm, which connected by 31 pins Connector with power supply voltage of 5.0V (Typ.)(VCC).

We are able to offer AD board for this display to support VGA video input.

Model	PD064VT5
Brand	PVI
Diagonal Size	6.4 inch
Type	a-Si TFT-LCD, LCM
Pixel Format	640(RGB)×480 [VGA] 125PPI
Configuration	RGB Vertical Stripe
Active Area	129.6(H)×97.44(V) mm
Outline Dim.	175.4(H)×126.9(V) mm
Bezel Area	134.8(H)×101.8(V) mm
Treatment	Antiglare
Luminance	400 cd/m² (Typ.)
Contrast Ratio	400:1 (Typ.) (TM)
View Direction	6 o'clock
Response Time	15/25 (Typ.)(Tr/Td)
Viewing Angle	50/50/15/35 (Typ.)(CR≥10)
Operating Mode	TN, Normally White, Transmissive
Support Color	262K
Light Source	CCFL [2 pcs] , 50K hours , W/O Driver
Weight	340±10g
Touch Panel	Without
Interface Type	TTL (1 ch, 6-bit) , 31 pins Connector
Power Supply	5.0V (Typ.)(VCC)
Environment	Operating Temperature: -20 ~ 70 °C ; Storage Temperature: -30 ~ 80 °C

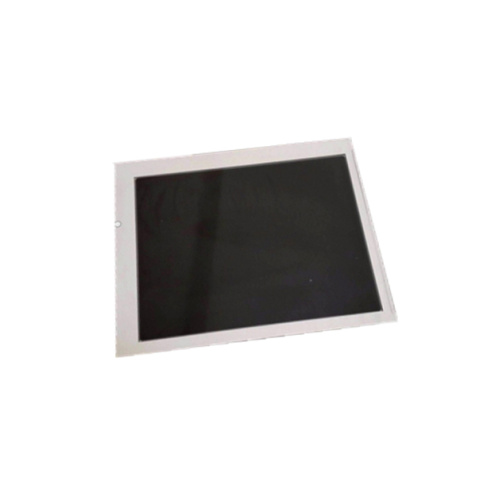

Product Picture:

PD064VT5
