PD080SY3 PVI 8.0 inch TFT-LCD
- Payment Type:
- T/T, Paypal, Western Union
- Incoterm:
- FOB, CIF, EXW
- Min. Order:
- 1 Bag/Bags
- Min. Order:
- 1 Bag/Bags
- Delivery Time:
- 3 Days
- Transportation:
- Ocean, Land, Air
- Port:
- SHENZHEN, SHENZHEN, SHENZHEN
Your message must be between 20 to 2000 characters
Contact Now| Place of Origin: | TAIWAN |
|---|---|
| Payment Type: | T/T,Paypal,Western Union |
| Incoterm: | FOB,CIF,EXW |
| Certificate: | CE,ROHS,ISO9001 |
| Transportation: | Ocean,Land,Air |
| Port: | SHENZHEN,SHENZHEN,SHENZHEN |
Prime View International Co., Ltd. (hereafter called PVI) PD080SY3 is a 8.0 inch diagonal a-Si TFT-LCD display panel product, with an integral WLED backlight system, without backlight driver, without touch screen. It features an operating temperature range of -30 ~ 70°C , a storage temperature range of -30 ~ 80°C .This PVI TFT-LCD is a 8.0 inch with Consumer Lcd Display, it have LCD Controller, Backlight Cable and Tft Color Screen. PD080SY3 supports display 800(RGB)×600 (SVGA) with aspect ratio of 4:3 (W:H), whose pixels are arranged in RGB Vertical Stripe. As for mechanical detail, it features active area of 162(W)×121.5(H) mm, outline size of 183(W)×141(H)×6.6(D) mm, viewing area size of 165.2(W)×124.7(H) mm, with surface treament of Antiglare, net weight of 256±15g. As a TN, Normally White, Transmissive LCM product, PD080SY3 can provides 250 cd/m² display brightness 500:1 transimissive contrast ratio, 70/70/50/70 (Typ.)(CR≥10) (L/R/U/D) viewing angle, best view direction on 6 o'clock , and response time of 15/25 (Typ.)(Tr/Td) ms. Gray scale or the brightness of the sub-pixel is determined with a 6-bit gray scale signal for each dot, thus presenting a palette of 262K colors. This product adopted 3S9P WLED as it's backlight systerm which was placed as Edge light type and have a working life time of 30K hours, external backlight driver is additionally needed. PD080SY3 utilizes Parallel RGB (1 ch, 6-bit) as it's signal inputting systerm, which connected by 60 pins FPC with power supply voltage of 3.3/7.7/15.5/-6.5V (Typ.)(VCC/AVDD/VGH/VGL). It's typical vertical frame rate (Fv) is 60Hz.
We are able to offer AD board for this display to support VGA video input.
|
Panel Model |
PD080SY3 |
|
Panel Brand |
PVI |
|
Panel Size |
8.0" |
|
Panel Type |
a-Si TFT-LCD, LCM |
|
Resolution |
800(RGB)×600, SVGA, 125PPI |
|
Pixel Format |
RGB Vertical Stripe |
|
Display Area |
162(W)×121.5(H) mm |
|
Bezel Opening |
165.2(W)×124.7(H) mm |
|
Outline Size |
183(W)×141(H) ×6.6(D) mm |
|
Surface |
Antiglare |
|
Brightness |
250 cd/m² (Typ.) |
|
Contrast Ratio |
500:1 (Typ.) (TM) |
|
Viewing Angle |
70/70/50/70 (Typ.)(CR≥10) |
|
Display Mode |
TN, Normally White, Transmissive |
|
Best View on |
6 o'clock |
|
Response Time |
15/25 (Typ.)(Tr/Td) |
|
Display Colors |
262K |
|
Lamp Type |
3S9P WLED , 30K hours , Without Driver |
|
Frequency |
60Hz |
|
Touch Screen |
Without |
|
Panel Weight |
256±15g |
|
Signal Interface |
Parallel RGB (1 ch, 6-bit) , 60 pins FPC |
|
Input Voltage |
3.3/7.7/15.5/-6.5V (Typ.)(VCC/AVDD/VGH/VGL) |
|
Environment |
Operating Temp.: -30 ~ 70 °C ; Storage Temp.: -30 ~ 80 °C |

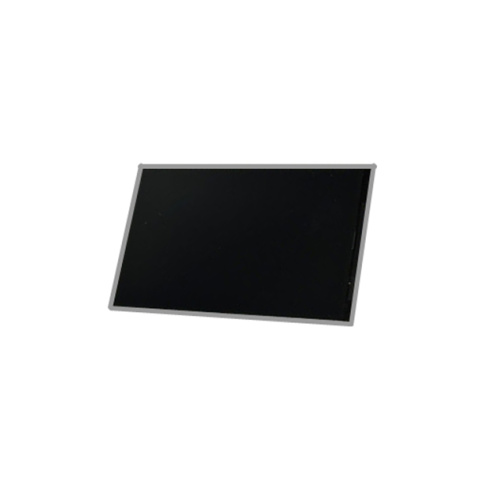

Product Picture:
