PO023OX1 PVI 2.3 inch TFT-LCD
- Payment Type:
- T/T, Paypal, Western Union
- Incoterm:
- FOB, CIF, EXW
- Min. Order:
- 1 Bag/Bags
- Min. Order:
- 1 Bag/Bags
- Delivery Time:
- 3 Days
- Transportation:
- Ocean, Land, Air
- Port:
- SHENZHEN, SHENZHEN, SHENZHEN
Your message must be between 20 to 2000 characters
Contact Now| Place of Origin: | TAIWAN |
|---|---|
| Payment Type: | T/T,Paypal,Western Union |
| Incoterm: | FOB,CIF,EXW |
| Certificate: | CE,ROHS,ISO9001 |
| Transportation: | Ocean,Land,Air |
| Port: | SHENZHEN,SHENZHEN,SHENZHEN |
Prime View International Co., Ltd. (hereafter called PVI) PO023OX1 is a 2.3 inch diagonal a-Si TFT-LCD display screen product, with an incorporated WLED lighting system, without backlight driver, without touch screen. This PVI TFT-LCD is a 2.3 inch with Consumer Lcd Display, it have LCD Controller, Backlight Cable and Tft Color Screen. Based on datasheet with version of Ver2.0 which was released out on 8 21 2009, PO023OX1 supports display 240(RGB)×240 with aspect ratio of 1:1 (W:H), whose pixels are arranged in RGB Vertical Stripe. As for mechanical detail, it features active area of 57.96(W)×57.96(H) mm, outline size of 75.6(W)×75.7(H) mm, viewing area size of 60.96(W)×60.96(H) mm, with surface treament of Antiglare, net weight of 46.0±5.0g. As a TN, Normally White, Transmissive LCM product, PO023OX1 can provides 1000 cd/m² display brightness 400:1 transimissive contrast ratio, 75/75/50/70 (Typ.)(CR≥10) (L/R/U/D) viewing angle, best view direction on 6 o'clock , and response time of 15/20 (Typ.)(Tr/Td) ms., thus presenting a palette of 65K colors. This product adopted 2S1P WLED as it's backlight systerm which was placed as Edge light type and have a working life time of 30K hours, external backlight driver is additionally needed. PO023OX1 utilizes CPU as it's signal inputting systerm, which connected by 30 pins FPC.
We are able to offer AD board for this display to support VGA video input.
|
Model |
PO023OX1 |
|
Brand |
PVI |
|
Diagonal Size |
2.3 inch |
|
Type |
a-Si TFT-LCD, LCM |
|
Pixel Format |
240(RGB)×240 105PPI |
|
Configuration |
RGB Vertical Stripe |
|
Active Area |
57.96(H)×57.96(V) mm |
|
Outline Dim. |
75.6(H)×75.7(V) mm |
|
Bezel Area |
60.96(H)×60.96(V) mm |
|
Treatment |
Antiglare |
|
Luminance |
1000 cd/m² (Typ.) |
|
Contrast Ratio |
400:1 (Typ.) (TM) |
|
View Direction |
6 o'clock |
|
Response Time |
15/20 (Typ.)(Tr/Td) |
|
Viewing Angle |
75/75/50/70 (Typ.)(CR≥10) |
|
Operating Mode |
TN, Normally White, Transmissive |
|
Support Color |
65K |
|
Light Source |
WLED [2S1P] , 30K hours , W/O Driver |
|
Weight |
46.0±5.0g |
|
Touch Panel |
Without |
|
Interface Type |
CPU , 30 pins FPC |
|
Environment |
Operating Temperature: -30 ~ 80 °C ; Storage Temperature: -40 ~ 85 °C |

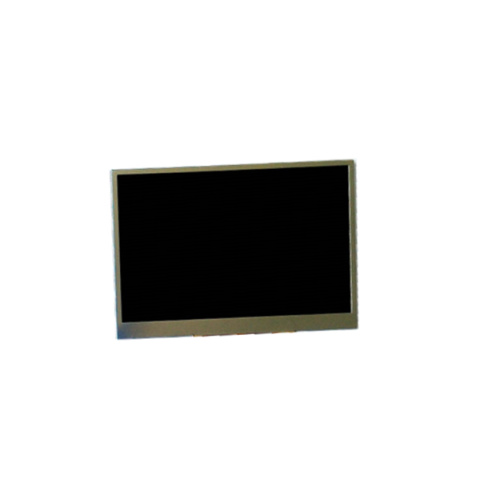

Product Picture:
