PW035XS4 PVI 3.5 inch TFT-LCD

Get Latest Price

Payment Type:: T/T, Paypal, Western Union

Incoterm:: FOB, CIF, EXW

Min. Order:: 1 Bag/Bags

Min. Order:: 1 Bag/Bags

Delivery Time:: 3 Days

Transportation:: Ocean, Land, Air

Port:: SHENZHEN, SHENZHEN, SHENZHEN

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Place of Origin:	TAIWAN
Payment Type:	T/T,Paypal,Western Union
Incoterm:	FOB,CIF,EXW
Certificate:	CE,ROHS,ISO9001
Transportation:	Ocean,Land,Air
Port:	SHENZHEN,SHENZHEN,SHENZHEN

Product Description

Prime View International Co., Ltd. (hereafter called PVI) PW035XS4 is a 3.5 inch diagonal a-Si TFT-LCD display screen product, with an incorporated WLED lighting system, without backlight driver, without touch screen. This PVI TFT-LCD is a 3.5 inch with Consumer Lcd Display, it have LCD Controller, Backlight Cable and Tft Color Screen. Based on datasheet with version of Ver4.0 which was released out on 6 18 2008, PW035XS4 supports display 320(RGB)×234 with aspect ratio of 16:9 (W:H), whose pixels are arranged in RGB Vertical Stripe. As for mechanical detail, it features active area of 76.32(W)×42.82(H) mm, outline size of 88(W)×53.5(H)×3.8(D) mm, viewing area size of 78.92(W)×45.42(H) mm, with surface treament of Antiglare, net weight of 34.0±5.0g. As a TN, Normally White, Transmissive LCM product, PW035XS4 can provides 350 cd/m² display brightness 350:1 transimissive contrast ratio, 60/60/50/40 (Typ.)(CR≥10) (L/R/U/D) viewing angle , and response time of 15/25 (Typ.)(Tr/Td) ms., thus presenting a palette of Full color colors. This product adopted 3S2P WLED as it's backlight systerm and have a working life time of 30K hours, external backlight driver is additionally needed. PW035XS4 utilizes TFT Specific Analog RGB as it's signal inputting systerm, which connected by 30 pins FPC with power supply voltage of 3.3/3.3/5.0/17.0/-12.0V (Typ.)(VCC/VDD1/VDD2/VGH/VEE). It's typical vertical frame rate (Fv) is 60Hz.

We are able to offer AD board for this display to support VGA video input.

Panel Model	PW035XS4
Panel Brand	PVI
Panel Size	3.5"
Resolution	320(RGB)×234, 115PPI
Display Area	76.32(W)×42.82(H) mm
Outline Size	88(W)×53.5(H) ×3.8(D) mm
Brightness	350 cd/m² (Typ.)
Viewing Angle	60/60/50/40 (Typ.)(CR≥10)
Display Colors	Full color
Frequency	60Hz
Weight	34.0±5.0g
Panel Type	a-Si TFT-LCD , LCM
Pixel Format	RGB Vertical Stripe
Bezel Opening	78.92(W)×45.42(H) mm
Surface	Antiglare
Contrast Ratio	350:1 (Typ.) (TM)
Display Mode	TN, Normally White, Transmissive
Response Time	15/25 (Typ.)(Tr/Td)
Lamp Type	3S2P WLED , 30K hours , Without Driver
Touch Screen	Without
Signal Interface	TFT Specific Analog RGB , 30 pins FPC
Input Voltage	3.3/3.3/5.0/17.0/-12.0V (Typ.)(VCC/VDD1/VDD2/VGH/VEE)
Environment	Operating Temp.: -20 ~ 75 °C ; Storage Temp.: -30 ~ 85 °C

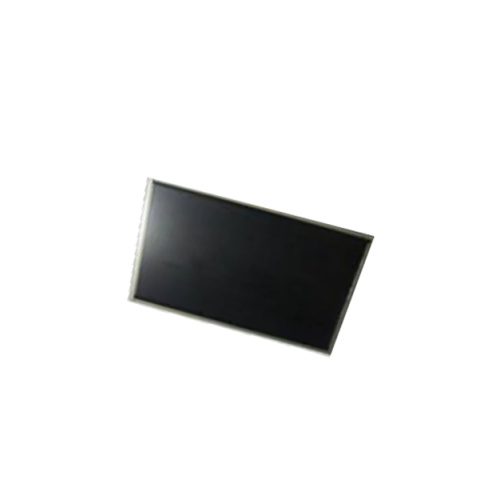

Product Picture:

PW035XS4
