PW050XS3 PVI 5.0 inch TFT-LCD
- Payment Type:
- T/T, Paypal, Western Union
- Incoterm:
- FOB, CIF, EXW
- Min. Order:
- 1 Bag/Bags
- Min. Order:
- 1 Bag/Bags
- Delivery Time:
- 3 Days
- Transportation:
- Ocean, Land, Air
- Port:
- SHENZHEN, SHENZHEN, SHENZHEN
Your message must be between 20 to 2000 characters
Contact Now| Place of Origin: | TAIWAN |
|---|---|
| Payment Type: | T/T,Paypal,Western Union |
| Incoterm: | FOB,CIF,EXW |
| Certificate: | CE,ROHS,ISO9001 |
| Transportation: | Ocean,Land,Air |
| Port: | SHENZHEN,SHENZHEN,SHENZHEN |
The PW050XS3 is a 5.0 inch diagonal a-Si TFT-LCD display panel product from Prime View International Co., Ltd. (hereafter called PVI), with an integral CCFL backlight system, without backlight driver, without touch screen. It features an operating temperature range of -30 ~ 85°C , a storage temperature range of -40 ~ 95°C . This PVI TFT-LCD is a 5.0 inch with Consumer Lcd Display, it have LCD Controller, Backlight Cable and Tft Color Screen. PW050XS3 supports display 320(RGB)×220 with aspect ratio of 17:9 (W:H), whose pixels are arranged in RGB Vertical Stripe. As for mechanical detail, it features active area of 112.5(W)×60.5(H) mm, outline size of 125.4(W)×74(H)×6.5(D) mm, viewing area size of 114.5(W)×62.5(H) mm, with surface treament of Antiglare, net weight of 90.0±5.0g. As a TN, Normally White, Transmissive LCM product, PW050XS3 can provides 350 cd/m² display brightness 350:1 transimissive contrast ratio, 60/60/50/35 (Typ.)(CR≥10) (L/R/U/D) viewing angle , and response time of 15/30 (Typ.)(Tr/Td) ms., thus presenting a palette of Full color colors. This product adopted 1 pcs CCFL as it's backlight systerm and have a working life time of 20K hours, external backlight driver is additionally needed. PW050XS3 utilizes TFT Specific Analog RGB as it's signal inputting systerm, which connected by 30 pins FPC with power supply voltage of 3.3/3.3/5.0/15.0/-12.0V (Typ.)(VCC/VDD1/VDD2/VGH/VGL). It's typical vertical frame rate (Fv) is 60Hz.
We are able to offer AD board for this display to support VGA video input.
|
Model Name |
PW050XS3 |
|
Manufacturer |
PVI |
|
Screen Size |
5.0 inch |
|
Pixel Number |
320(RGB)×220 77PPI |
|
Active Area(mm) |
112.5 × 60.5 (H×V) |
|
Bezel Area(mm) |
114.5 × 62.5 (H×V) |
|
Luminance |
350 (Typ.)(cd/m²) |
|
Viewing Angle |
60/60/50/35 (Typ.)(CR≥10) |
|
Color Depth |
Full color |
|
Mass |
90.0±5.0g |
|
Refresh Rate |
60Hz |
|
Screen Type |
LCM , a-Si TFT-LCD |
|
Arrangement |
RGB Vertical Stripe |
|
Outline(mm) |
125.4 × 74 × 6.5 (H×V×D) |
|
Treatment |
Antiglare |
|
Contrast Ratio |
350 : 1 (Typ.) (TM) |
|
Work Mode |
TN, Normally White, Transmissive |
|
Response |
15/30 (Typ.)(Tr/Td) ms |
|
Backlight |
1 pcs CCFL , 20K hours , No Driver |
|
Touchscreen |
Without |
|
Signal Type |
TFT Specific Analog RGB , 30 pins FPC |
|
Voltage Supply |
3.3/3.3/5.0/15.0/-12.0V (Typ.)(VCC/VDD1/VDD2/VGH/VGL) |
|
Max. Ratings |
Storage Temp.: -40 ~ 95 °C Operating Temp.: -30 ~ 85 °C |

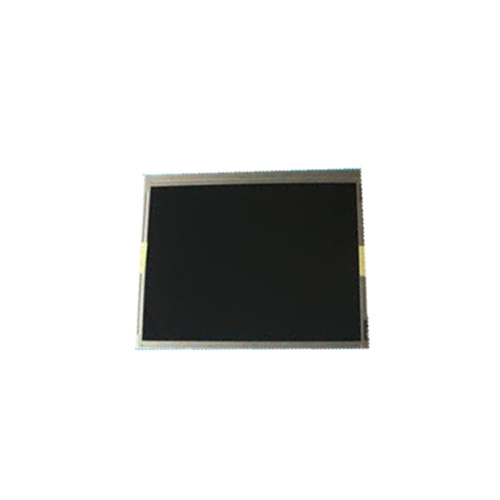

Product Picture:
