Prime View International Co., Ltd. (hereafter called PVI) PW062XS3 is a 6.2 inch diagonal a-Si TFT-LCD display panel product, with an integral CCFL backlight system, without backlight driver, without touch screen. It features an operating temperature range of -20 ~ 80°C , a storage temperature range of -30 ~ 80°C . This PVI TFT-LCD is a 6.2 inch with Consumer Lcd Display, it have LCD Controller, Backlight Cable and Tft Color Screen. PW062XS3 supports display 480(RGB)×234 with aspect ratio of 16:9 (W:H), whose pixels are arranged in RGB Vertical Stripe. As for mechanical detail, it features active area of 137.52(W)×77.22(H) mm, outline size of 154.4(W)×92.6(H)×6.2(D) mm, viewing area size of 140.7(W)×80.4(H) mm, with surface treament of Antiglare, net weight of 136±10g. As a TN, Normally White, Transmissive LCM product, PW062XS3 can provides 350 cd/m² display brightness 350:1 transimissive contrast ratio, 50/50/15/35 (Typ.)(CR≥10) (L/R/U/D) viewing angle, best view direction on 6 o'clock , and response time of 15/25 (Typ.)(Tr/Td) ms., thus presenting a palette of Full color colors. This product adopted 1 pcs CCFL as it's backlight systerm which was placed as Edge light type and have a working life time of 30K hours, external backlight driver is additionally needed. PW062XS3 utilizes TFT Specific Analog RGB as it's signal inputting systerm, which connected by 26 pins FPC with power supply voltage of 3.3/3.3/5.0/17.0/-12.0V (Typ.)(VCC/VDD1/VDD2/VGH/VGL).
We are able to offer AD board for this display to support VGA video input.
|
Panel Model |
PW062XS3 |
|
Panel Brand |
PVI |
|
Panel Size |
6.2" |
|
Resolution |
480(RGB)×234, 86PPI |
|
Display Area |
137.52(W)×77.22(H) mm |
|
Outline Size |
154.4(W)×92.6(H) ×6.2(D) mm |
|
Brightness |
350 cd/m² (Typ.) |
|
Viewing Angle |
50/50/15/35 (Typ.)(CR≥10) |
|
Best View on |
6 o'clock |
|
Display Colors |
Full color |
|
Weight |
136±10g |
|
Panel Type |
a-Si TFT-LCD , LCM |
|
Pixel Format |
RGB Vertical Stripe |
|
Bezel Opening |
140.7(W)×80.4(H) mm |
|
Surface |
Antiglare |
|
Contrast Ratio |
350:1 (Typ.) (TM) |
|
Display Mode |
TN, Normally White, Transmissive |
|
Response Time |
15/25 (Typ.)(Tr/Td) |
|
Lamp Type |
1 pcs CCFL , 30K hours , Without Driver |
|
Touch Screen |
Without |
|
Signal Interface |
TFT Specific Analog RGB , 26 pins FPC |
|
Input Voltage |
3.3/3.3/5.0/17.0/-12.0V (Typ.)(VCC/VDD1/VDD2/VGH/VGL) |
|
Environment |
Operating Temp.: -20 ~ 80 °C ; Storage Temp.: -30 ~ 80 °C |

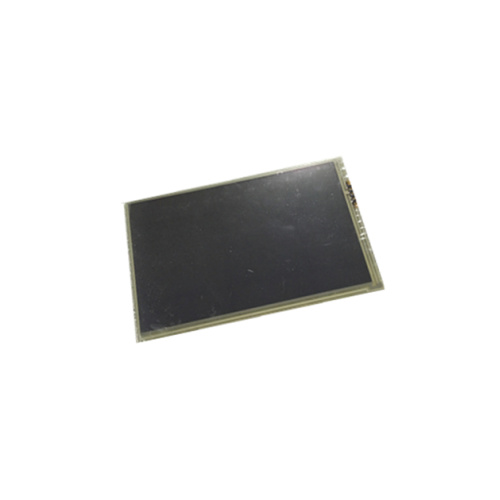

Product Picture:
