Product Description

PW080XU4 is a 8.0" diagonal a-Si TFT-LCD display panel product from Prime View International Co., Ltd. (hereafter called PVI), with an integral WLED backlight system, without backlight driver, without touch screen. It features an operating temperature range of -30 ~ 70°C , a storage temperature range of -40 ~ 80°C .This PVI TFT-LCD is a 8.0 inch with Consumer Lcd Display, it have LCD Controller, Backlight Cable and Tft Color Screen. PW080XU4 supports display 480(RGB)×220 with aspect ratio of 17:9 (W:H), whose pixels are arranged in RGB Vertical Stripe. As for mechanical detail, it features active area of 180.72(W)×94.27(H) mm, outline size of 193(W)×108.3(H)×7(D) mm, viewing area size of 183.52(W)×97.07(H) mm, with surface treament of Antiglare, net weight of 218±15g. As a TN, Normally White, Transmissive LCM product, PW080XU4 can provides 300 cd/m² display brightness 400:1 transimissive contrast ratio, 50/50/15/35 (Typ.)(CR≥10) (L/R/U/D) viewing angle , and response time of 15/25 (Typ.)(Tr/Td) ms., thus presenting a palette of Full color colors. This product adopted 3S9P WLED as it's backlight systerm which was placed as Edge light type and have a working life time of 20K hours, external backlight driver is additionally needed. PW080XU4 utilizes TFT Specific Analog RGB as it's signal inputting systerm, which connected by 30 pins FPC with power supply voltage of 3.3/3.3/5.0/17.0/-12.0V (Typ.)(VCC/VCCG/AVDD/VGH/VEE). It's typical vertical frame rate (Fv) is 60Hz.

We are able to offer AD board for this display to support VGA video input.

Model	PW080XU4
Brand	PVI
Diagonal Size	8.0 inch
Type	a-Si TFT-LCD, LCM
Pixel Format	480(RGB)×220 65PPI
Configuration	RGB Vertical Stripe
Active Area	180.72(H)×94.27(V) mm
Outline Dim.	193(H)×108.3(V) ×7(D) mm
Bezel Area	183.52(H)×97.07(V) mm
Treatment	Antiglare
Luminance	300 cd/m² (Typ.)
Contrast Ratio	400:1 (Typ.) (TM)
Response Time	15/25 (Typ.)(Tr/Td)
Viewing Angle	50/50/15/35 (Typ.)(CR≥10)
Operating Mode	TN, Normally White, Transmissive
Support Color	Full color
Light Source	WLED [3S9P] , 20K hours , W/O Driver
Weight	218±15g
Frame Rate	60Hz
Touch Panel	Without
Interface Type	TFT Specific Analog RGB , 30 pins FPC
Power Supply	3.3/3.3/5.0/17.0/-12.0V (Typ.)(VCC/VCCG/AVDD/VGH/VEE)
Environment	Operating Temperature: -30 ~ 70 °C ; Storage Temperature: -40 ~ 80 °C

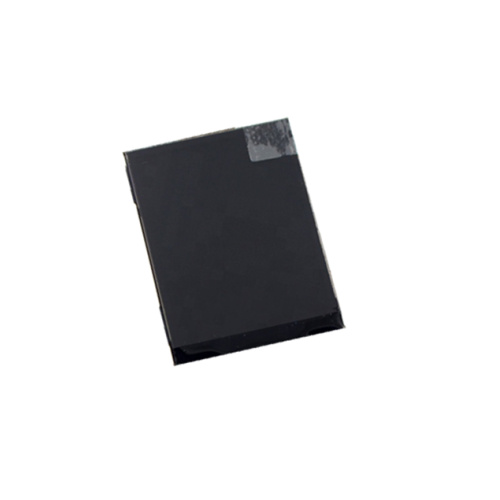

Product Picture:

PW080XU4
