TM043YCPA01 4.3 inch Tianma TFT-LCD
-
$25.001-99 Piece/Pieces
-
$20.00≥100 Piece/Pieces
- Transportation:
- Land, Ocean, Air, Express
- Port:
- Shenzhen
Your message must be between 20 to 2000 characters
Contact Now| Place of Origin: | China |
|---|---|
| Productivity: | 10000 pcs |
| Supply Ability: | 10000pcs |
| Payment Type: | Paypal,T/T |
| Incoterm: | FOB,EXW |
| Certificate: | CE, ROHS |
| Transportation: | Land,Ocean,Air,Express |
| Port: | Shenzhen |
This Tianma TFT-LCD is a 4.3 inch with Consumer Lcd Display, it have LCD Controller, Backlight Cable and Tft Color Screen. TM043YCPA01 supports display 480(RGB)×800 (WVGA) with aspect ratio of 3:5 (W:H), whose pixels are arranged in RGB Vertical Stripe. As for mechanical detail, it features active area of 56.16(W)×93.6(H) mm, outline size of 59.16(W)×101.05(H)×0.5(D) mm, with surface treament of Without Polarizer, utilizing 0.25+0.25 mm mm plate. As a SFT, Normally Black, Transmissive CELL product, TM043YCPA01 can provides 800:1 transimissive contrast ratio, 80/80/80/80 (Typ.)(CR≥10) (L/R/U/D) viewing angle, best view direction on Symmetry , and response time of 30 (Typ.)(Tr+Td) ms. Gray scale or the brightness of the sub-pixel is determined with a 8-bit gray scale signal for each dot, thus presenting a palette of 16.7M colors, also with performance of color gamut 65% (NTSC). This product have no backlight.
We are able to offer AD board for this display to support VGA video input.
|
Model P/N |
TM043YCPA01 |
|
Brand |
TIANMA |
|
Diagonal Size |
4.3" |
|
Panel Type |
a-Si TFT-LCD, CELL |
|
Resolution |
480(RGB)×800, WVGA 217PPI |
|
Pixel Format |
RGB Vertical Stripe |
|
Active Area |
56.16(W)×93.6(H) mm |
|
Outline(mm) |
59.16 × 101.05 × 0.5 (H×V×D) |
|
Treatment |
Without Polarizer |
|
Luminance |
0 cd/m² |
|
Contrast Ratio |
800 : 1 (Typ.) (TM) |
|
Viewing Angle |
80/80/80/80 (Typ.)(CR≥10) |
|
Response |
30 (Typ.)(Tr+Td) ms |
|
Good View at |
Symmetry |
|
Work Mode |
SFT, Normally Black, Transmissive |
|
Glass Thickness |
0.25+0.25 mm |
|
Transmissivity |
4.3% (Typ.) |
|
Color Depth |
16.7M 65% NTSC |
|
Backlight |
No B/L |
|
Touchscreen |
Without |
|
Max. Ratings |
Storage Temp.: -30 ~ 80 °C Operating Temp.: -20 ~ 70 °C |

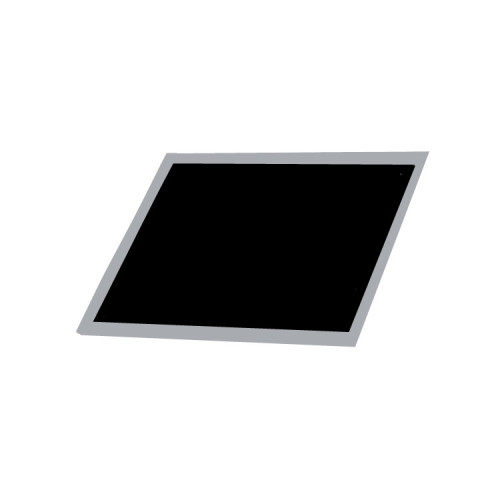

Product Picture:
