DZJ8063 Barrier Gate Motor - MAINTEX

Get Latest Price

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Product Description

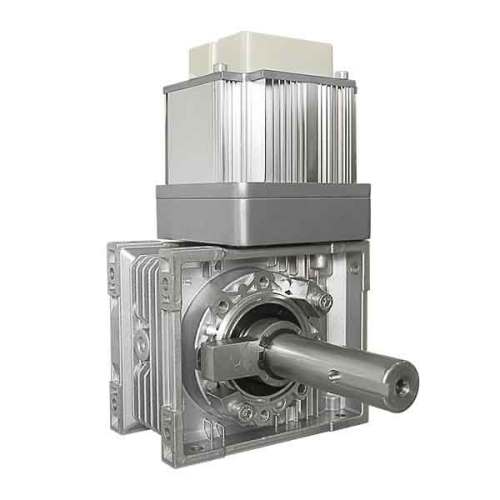

DZJ8063 Barrier Gate Motor is a type of Barrier Gate Motor.
Its advantages are:
1. 30V low-voltage BLDC motor control system that safe and reliable.
2. Digital sensor system of boom arm position, the speed of lifting and falling can be programmed.
3. Set by mobile phone APP via bluetooth module.
4. It has multiple operation running modes, such as single time, fleet and queue.
5. Not dead Angle of the falling boom, can manually lifting the boom after power failure.
6. Automatically alarms when someone maliciously lift the boom.
7. With two current output interfaces, it is convenient to access external devices such as traffic lights.
8. Multiple input interfaces,it is convenient to connect with Electronic Toll Collection System, monitoring and other systems.
9. Support ground sensor, radar and other Vehicle Loop Detector.

DZJ8063 Barrier Gate Motor Parameters

Model	SPEC
DZJ8063	Driving Mode: 3 phase sine wave	Rated Voltage:220V AC
	Rated Powe: 200W	Rated Torque: 190N.m
	Connector Type:dry contact input	The shaft Diameter:30mm
	Working Temperature: -30°C-80°C	Insulation Class: F
	No-load Speed: 2000rpm	Length of Boom:6M
	Arm Opening Speed: 1.5S-6S	Length of Fence:4.5M
