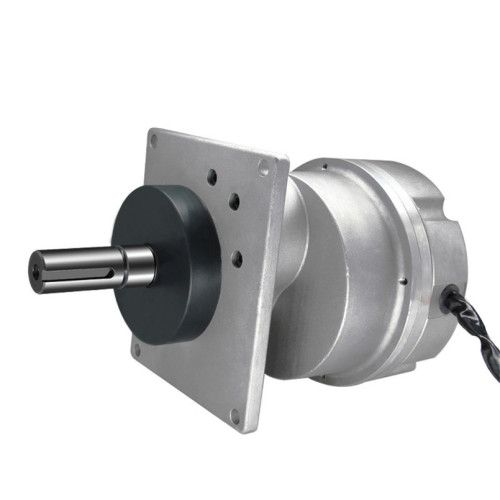

DZJ403 Barrier Gate Motor is a type of Barrier Gate Motor.
Its advantages are:
1. 30V low-voltage BLDC motor control system that safe and reliable.
2. Digital sensor system of boom arm position, the speed of lifting and falling can be programmed.
3. Set by mobile phone APP via bluetooth module.
4. It has multiple operation running modes, such as single time, fleet and queue.
5. Not dead Angle of the falling boom, can manually lifting the boom after power failure.
6. Automatically alarms when someone maliciously lift the boom.
7. With two current output interfaces, it is convenient to access external devices such as traffic lights.
8. Multiple input interfaces,it is convenient to connect with Electronic Toll Collection System, monitoring and other systems.
9. Support ground sensor, radar and other Vehicle Loop Detector.

DZJ403 Barrier Gate Motor Parameters

Model	SPEC
DZJ403	RATED VOLTAGE : 30V DC	RATED POWER: 250W

	RATED TORQUE: 60N.m	MAXIMUM TORQUE: 70N.m

	WEIGHT : 4.5KG	OPENING SPEED : 0.5~4S

	INSULATION CLASS: F	SHAFT DIAMETER: 24mm

	WORKING TEMPERATURE: -40°C~80°C	APPLICABLE BOOM LENGTH : 1 〜4m
