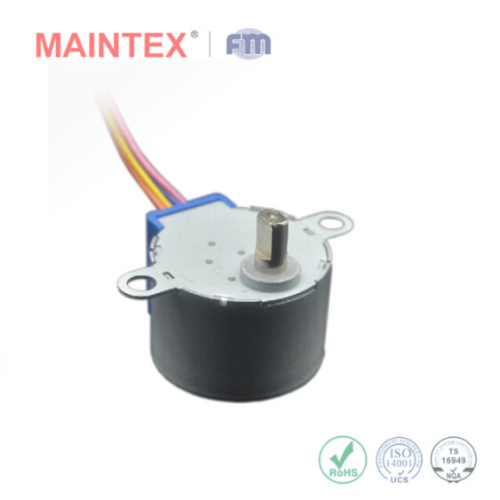

Permanent magnet motor 24mm stepper motor
Main Performance of Permanent magnet motor 24mm stepper motor
Diameter: 24 mm
Step Angle: 5.625°
Voltage: 5V, can be customized.
Phase: 4
Rotation: CW/CCW
Excitation: Bipolar, 1-2
Parameter of Permanent magnet motor 24mm stepper motor
| Items | Spec. |
| Resistance per phase | 22±10%/phase |
| Pull out frequency | ≥1000HZ |
| Starting frequency | ≥500HZ |
| Detent torque | ≥60mN.m |
| Dielectric strenth | 600VAC/1mA/1s |
| Step angle | 5.625 degree |
| Reduction ratio | 1/32 |
| OEM | Accept |
Parameter can be customized according to your actual demand, for detailed information please contact me or leave a message.
Drawing of Permanent magnet motor 24mm stepper motor
Application of Permanent magnet motor 24mm stepper motor
All characteristics above are customizable, if you want Worm Gear Motor, Stepper Motor, Brushless DC Motor, Brush Motor and other motors' OEM / ODM service, please contact us for further information.
