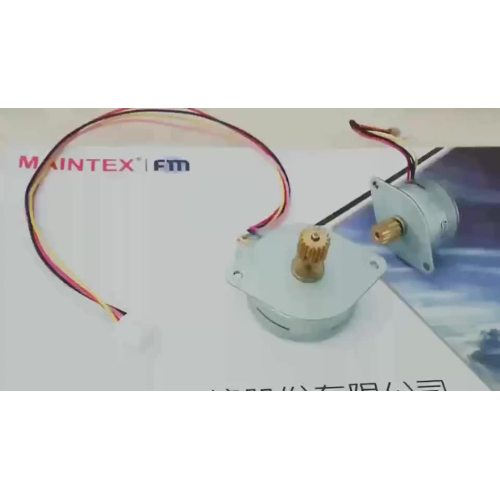

Fuji micro Japan 35by212 step motor,2 phase pm permanent magnet stepper motor,24v gear dc stepping motors for Attendance machine

Product Description

Main Performance of Fuji micro Japan 35by212 step motor

Diameter: 35 mm
Step Angle: 7.5°

Voltage: 24V, customized.

Phase: 2

Rotation: CW/CCW

Excitation: Bipolar, 2-2

Parameter of Fuji micro Japan 35by212 step motor

Driving Voltage	24±10% V
Phase	2 Phase
Excitation	2-2, Bipolar
Step Angle	7.5°
Rotation	CW/CCW
Resistance	33±10% Ω
Inductance	36±20% mH
Pull In Frequency	800 Hz
Pull Out Frequency	1000 Hz
Holding Torque	300 gf.cm
Pull out Torque	150 gf.cm
Dielectric Withstand Voltage	3 mA
Insulation Resistance	100 MΩ
Insulation Grade	F
Temperature Rise	115 ℃
Detent Torque	55 gf.cm
Weight	70 g
Noise	50 dBmax

All parameter can be customized according to your actural demand, for detailed information please contact me or leave a message.

Drawing of Fuji micro Japan 35by212 step motor

Application of Fuji micro Japan 35by212 step motor
