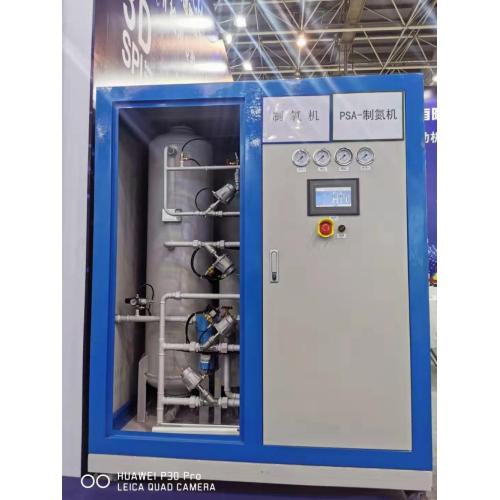

On-site SMT Dedicated Nitrogen Generator Equipment

On-site SMT Dedicated Nitrogen/N2 Generator Equipment

Why use nitrogen for lead-free process?
    Lead-free has put forward many new requirements for reflow soldering and other equipment, mainly including: higher heating capacity, thermal stability under no-load and load conditions, materials suitable for high-temperature work, good thermal insulation, and excellent temperature uniformity Performance, nitrogen leak-proof ability, flexibility of temperature curve, stronger cooling capacity, etc. In the process, the use of nitrogen atmosphere can well meet these requirements, avoiding and reducing the defects produced in the welding process of the product.

Service:

1.reasonable activated carbon modular design, convenient and quicker to replace dispense with professional
personnel.
2.Can provide purties９９.９９９％Nitrogen gas at a time ,  purity stability,  pressure stability
3.Using Siemens HMI,display the parameters , such as the nitrogen purity and real-time nitrogen flow, more humane.
4.A key boot,automatic oxygen supply after the N2 purity qualified
5.Adopt imported BURKERT valve, long service life, stable property
6.Adopt imported SMC meter, measuring gas flow accurately, stable performance

Related Products：Air Separation Plants, Liquid Oxygen / Nitrogen Plant,  PSA Oxygen/Nitrogen Generator, Medical (gas) Oxygen Plant, VPSA Oxygen / Nitrogen Generator, and so on.

Nitrogen capacity: 1- 2000Nm3/h

Nitrogen purity: 95%-99.999%
Nitrogen pressure: 0.5-0.8Mpa( boost for high pressure
Nitrogen dew point: s-40.C(Atmosphere pressure)
Customized pressure, purity and capacity ranges.

Technical characteristics
1.The material source is from the nature, the system only needs compressed air and power, so the cost of power and operation is less
2. Nitrogen purity is easy to adjust, it is only affected by the capacity, purity of normal nitrogen is at the range of 95%-99.99%(can be adjusted), purity of high nitrogen is at the range of 99%-99.999%(can be adjusted)
3. The system is automatic, quick starting and no need to monitor. One button for start and stop, run 10-15 minutes to generate the N2 air
4. The working progress is easy, the configuration is compact, the landing space is less and the environment is well-adapted
5. Snow storm filling can avoid the damage of CMs
6. Digital flow meter has pressure compensation, it is highly precise meter which can monitor the progress, it can test quick flow and accumulate the total capacity
