Multi Point 22 Inch Infrared Touch Screen
- Min. Order:
- 1 Piece/Pieces
- Min. Order:
- 1 Piece/Pieces
- Transportation:
- Ocean, Land, Air
- Port:
- ShenZhen, HongKong
Your message must be between 20 to 2000 characters
Contact Now| Supply Ability: | 1000000 |
|---|---|
| Payment Type: | L/C,T/T,Paypal,Western Union |
| Incoterm: | FOB,CIF,EXW |
| Transportation: | Ocean,Land,Air |
| Port: | ShenZhen,HongKong |

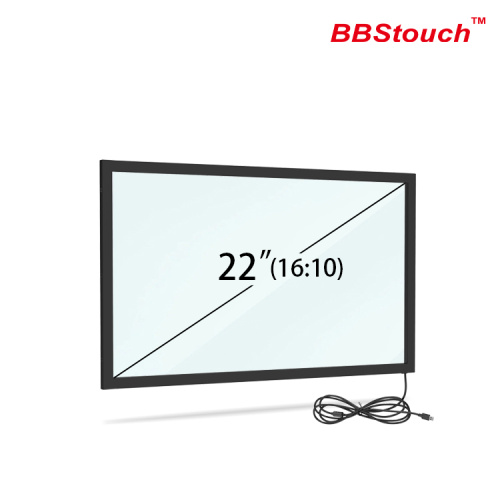

Infrared Touch Screen TK Series （22 inch）
Our IR touch screen is a high end ,multi point infrared touch screen technology with perfect combination of tradition and innovation,Our touch screen has the features of fast reaction speed, strong anti-environment light ability, good stability and easy integration.The 22 inch infrared touch screen is uniquely ultra-narrow, ultra-thin shape design, infrared sensing principle, display ratio: 16:10, frame thickness10mm. Dimensions: 518mm*340mm, touch area: 475mm*297mm.
Product Overview
TK series infrared touch screen is an economical product newly developed by BBSTouch, and has its own research and development procedures, the latest algorithm, high cost performance, 10-point touch and other characteristics, can meet various customization needs, mainly used in ATM, touch display, Self-service terminal, military control system, industrial control field, etc.
The company has passed the ISO9001 quality system and ISO140001 environmental system certification. The products are assembled in a class 1000 dust-free workshop. During the production process, they pass the 24-hour aging and 100% IQC, OQC testing to ensure product quality.
Product Advantages
◇ Vandal proof, wear-resistant;
◇ Maintenance free, longer life expectancy;
◇ Fault tolerance design to ensure reliability;
◇ Versatile touch object;
◇ Super transparency;
◇ Integrated controller;
◇ Gesture support for TK-series;
◇ Operable in various light conditions, indoor and outdoor.
| Product Name: | Infrared Touch Screen TK Series | General Sizes: | 15"-23.6" |
| Material： | Aluminium Frame+ Tempered Glass | Transparency: | > 92% |
| Touch Resolution: | Interpolated 32768 X32768 | Input Method: | Finger or Touch Pen |
| Touch Object: | >5mm In Diameter, IR Opaque | Response Speed: | <10ms |
| Durability: | Unlimited Number Of Touches | Operating Voltage: | DC 5V ±5% |
| Touch Points: | 10 | Operating Current: | <200mA |
| About Noies: | No Noies | Interface: | USB,plug and play |
| Transmission Speed: | 480Mbps | Altitude: | 3,000m |
| Life Time: | 1 Year | Certificates: | CE, FCC,RoHS |
| Touch Surface: | Standard: 3mm Tempered Glass Embedded, AG/AR Glass Optional | ||
| Vandal-Proof: | Meet Ball Drop Test (1.04kg, 63.5mm Diameter Ball Dropped From Height Of 1m) | ||
| Temperature: | Operating: –10°C to 40°C; Storage: –20°C to 60°C | ||
| Humidity: | Operating: 0 to 85%,Storage: 10 to 90% (RH Non-condensing) | ||
| Operation System: | Windows ， Linux ，Android，Mac |
||
Engineering Drawing ：22 inch,GT-IR-TK22
Other Products
We have our own brand -BBSTouch,already established full-automatic production line and professional sales&after-sales team.In addition infrared touch screen,we also supply 4 wire resistive touch screen, 5 wire resistive touch screen,capacitive touch screen,interactive touch foil,touch monitor, infrared touch frame,rametouch all-in-one PC and other touch products.
