Mini Touch Screen 4 Wire Resistive 2.7"
- Min. Order:
- 1 Piece/Pieces
- Min. Order:
- 1 Piece/Pieces
- Transportation:
- Ocean, Land, Air
- Port:
- ShenZhen, HongKong
Your message must be between 20 to 2000 characters
Contact Now| Supply Ability: | 1000000 |
|---|---|
| Payment Type: | L/C,T/T,Paypal,Western Union |
| Incoterm: | FOB,CIF,EXW |
| Transportation: | Ocean,Land,Air |
| Port: | ShenZhen,HongKong |

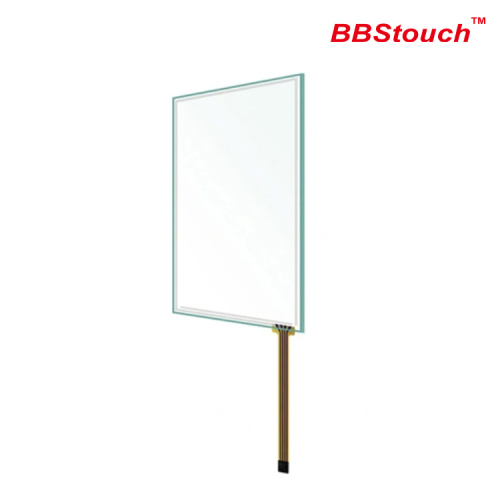

4 Wire Resistive Touch Screen
We apecialize in 4 wire resistive touch screen since it established.This 2.7 inch resistive touch screen is the mini touch screen.If you are interested in wholesale resistive touch screen, We are your best choice.In a standard 4-wire resistive touchscreen configuration, an upper and bottom layer are used to detect touch commands. One of these layers contains electrodes in the Y direction, whereas the other layer contains electrodes in the X direction. The two layers are designed to measure the voltage created by the opposite layer.
Product Overview
Our resistance touch screen is based on proven 4-wire resistive technology, the preferred solution for applications that demand reliability, input flexibility, and contamination resistance. The screens work with standard EETI/controller/chip solutions and drivers under a wide variety of operating systems, and are available in a set of standard products as well as customized designs.
Pruduct Quality
Our resistive touchscreens are available with proprietary technology to deliver a touch response that is drift-free and accurate in high-use applications. These touch screens provide a longer product life, designed to withstand more than 5 million touches.
We use stable IC and bonding equipment to maintain high yield and quality.Touch function requires professional calibration to avoid the interference of the motherboard,driver board and other electrical appliances to achieve the best experience.We have professional knowledge, technology and clean room to bring customers high reliability products!
Product Features
♦ 4-wire resistive touch, technologically mature, and can be used with gloves in harsh environments.
♦ Products precision, and robustness ,extremely durable.
♦ Can be sealed against contamination,support NEMA 4/4x/12 and IP65 standards.
♦ Can meet the pencil hardness 3H per ASTM D3363.
♦ Class 1,000 clean,fast delivery,high quality. (Air Bonding / OCR Bonding）
Production Show
Product Parameters
| Product Name: | 4 Wire Resistive Touch Screen 2.7" | |||||||
| Product Structure: | ITO Film + ITO Glass | |||||||
| Light Transmissi On: | ≥78% | |||||||
| Input Method: | Finger,Pen Stylus | |||||||
| Insulation Impedance: | Exceeds 20M ohm, @DC 25V | |||||||
| Operational Voltage: | 2.5V to 5V DC | |||||||
| Surface Hardness: | 3H | |||||||
| Operation /Storage Temperature: | -20° C -50° C, -40° C~ 75° C | |||||||
| Humidity: | 90% RH, Noncondensing | |||||||
| Touch Durability: | 5 Million Touches | |||||||
| Operation Systems: | Windows，Android，Linux | |||||||
| Product Certified: | CE,FCC,RoHS | |||||||
| Warranty: | 1 Year | |||||||
Engineering Drawing :GT-4W-2.7
Product Customizable
We provides a wide range of customization options to meet your requirements, including touch screen size, FPC outlet location, length, ITO glass thickness, customer Logo, and clear hard coating & anti-newton rings.
Product Applications
Point-of-sale (POS) terminals,voting, ticket and lottery terminals,industrial automation,industrial panel PC,iedical equipment,office automation,retail automation,pharmacy automation.
Other Products
We have our own brand -BBSTouch,already established full-automatic production line ,full-enclosed dust-free plant,and passed ISO 9001 and ISO 14001 system.In addition 4 wire resistive touch screen, we also supply 5 wire resistive touch screen,capacitive touch screen ,infrared touch screen,interactive touch foil,touch monitor,touch all-in-one PC and other touch products.
